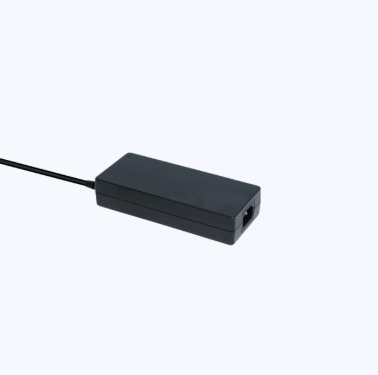

180W Power Supply-GJ180WD Series Desktop Series Power Supply

Suitable for ITE and AV Equipment

The 180W output class is appropriate for electronic equipment with moderate power requirements and continuous operating loads. Typical applications can include professional monitors, display equipment, networking devices, communication terminals, audio equipment, digital media equipment, and other ITE or AV systems requiring an external DC power source.

For equipment with multiple internal modules or connected peripherals, power demand may vary considerably between standby, normal operation, and peak operating conditions. Selecting an external power supply with sufficient capacity helps maintain stable operation when the equipment approaches its maximum expected load. Engineers should therefore evaluate the complete system power requirement rather than relying only on the rated consumption of the primary electronic board.

Advantages of an External Desktop Power Architecture

An external power supply separates AC input processing and DC conversion from the main equipment. This arrangement can simplify the internal structure of the host device and leave more available space for functional electronics, interfaces, heat dissipation components, or mechanical structures.

For compact ITE and AV products, this separation can also reduce the amount of power conversion hardware installed inside the main enclosure. The resulting layout may provide greater freedom when positioning sensitive electronic components and managing internal heat sources.

Maintenance is another consideration. When the power supply is externally accessible, inspection or replacement can be performed without opening the primary equipment enclosure in many installation configurations. This can be particularly useful for commercial equipment that operates for extended periods and requires practical service procedures.

Power Capacity and System Load Considerations

Power supply selection should account for more than the average operating consumption of the connected equipment. Startup current, processor or amplifier load changes, peripheral devices, display brightness, communication modules, and other transient conditions can affect the actual power requirement.

A suitable power supply should provide adequate capacity for the highest expected operating condition while maintaining a reasonable margin. Excessive oversizing is not always necessary, but operating continuously at or near the maximum rating may leave limited capacity for load fluctuations or future equipment revisions.

For this reason, engineers evaluating the GJ180WD Series should first establish the equipment's maximum DC power requirement and then verify the required output voltage, current, connector configuration, cable length, and polarity. Mechanical compatibility should also be checked to ensure that the external power supply can be positioned conveniently in the intended installation environment.

Interface and Mechanical Integration

The GJ180WD Series uses a desktop-style enclosure that can be positioned outside the main electronic device. The available AC inlet configurations provide flexibility for different power-cord arrangements and equipment markets.

For OEM equipment manufacturers, electrical compatibility is only one part of the integration process. The DC connector, cable specification, connector polarity, cable routing, mounting or placement method, and clearance around the adapter should be confirmed during product development. These details can influence the overall usability and reliability of the finished ITE or AV product.

The external enclosure also needs sufficient clearance during installation to avoid unnecessary mechanical stress on cables and connectors. Proper placement can help maintain ventilation around the power supply and reduce the possibility of accidental obstruction during long-term operation.

Protection for Electronic Equipment

Power conversion equipment must operate reliably under changing load conditions and abnormal electrical events. Protection functions incorporated into the GJ180WD Series provide an additional layer of protection for both the power supply and the connected equipment.

Over-current and short-circuit protection are particularly relevant to electronic products with variable loads or downstream components that may occasionally experience faults. Over-voltage protection provides further protection against abnormal output conditions. These functions are important considerations when evaluating an external power supply for commercial ITE and AV equipment where stable operation is required over extended service periods.

Efficiency and Energy Considerations

Power supply efficiency affects how effectively input electricity is converted into usable DC output. Higher conversion efficiency can reduce unnecessary energy losses and limit the amount of heat generated during operation. This is relevant for equipment operating continuously, especially in commercial environments where many devices may be powered simultaneously.

The GJ180WD Series incorporates an energy-efficient switching power architecture suitable for modern external electronic equipment. For system designers, efficiency should be considered together with actual load conditions, standby consumption, operating temperature, and expected daily operating hours when evaluating the overall power solution.

Safety and EMC Requirements for Global Applications

ITE and AV equipment is often distributed across multiple markets, making safety and electromagnetic compatibility important during product development. A power supply used as part of a finished electronic system must be evaluated according to the requirements applicable to the target market and end product.

The GJ180WD Series supports a range of international safety and EMC requirements, providing a foundation for manufacturers developing products for different regions. Certification and compliance documentation should nevertheless be reviewed against the exact product configuration and destination market before mass production.

Application Value for OEM Electronics Manufacturers

For OEM manufacturers, selecting a desktop power supply is closely connected to the complete product architecture. The power supply needs to match the equipment's electrical requirements while also fitting its enclosure concept, cable configuration, installation method, and target market.

The GJ180WD Series provides an external power option for ITE and AV products requiring up to the 180W power class. Its desktop architecture can simplify integration while allowing the main equipment enclosure to focus on its core electronic functions. For manufacturers developing displays, communication equipment, networking products, audio systems, and other commercial electronics, this configuration can provide a practical balance between power capacity, system integration, serviceability, and international market requirements.

For a broader range of ITE and AV power solutions, manufacturers can also review the ITE&AV Power Adapter product range to compare available power classes and configurations.
