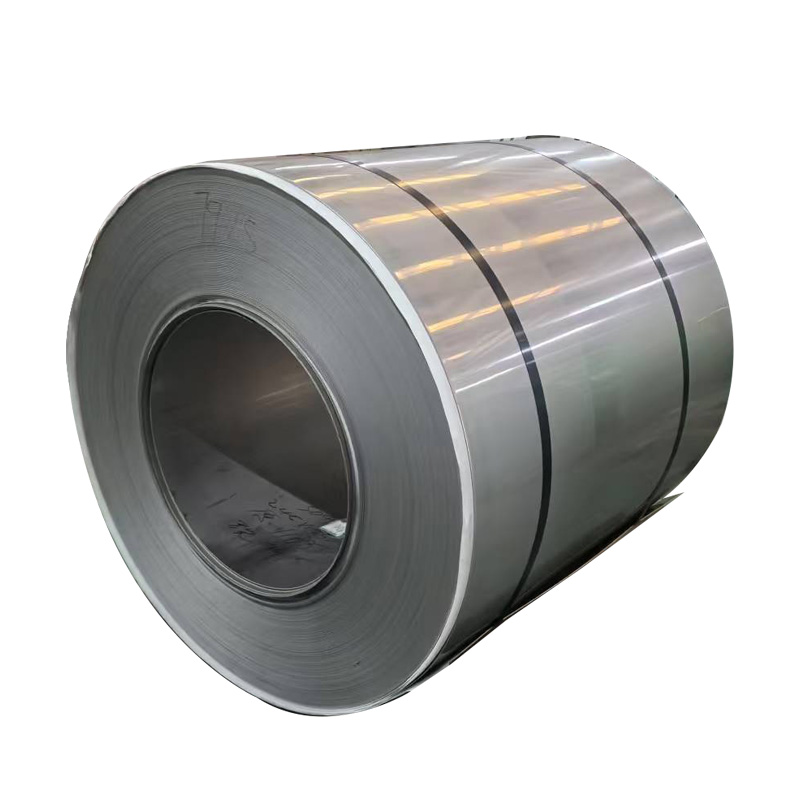

304L Stainless Steel Coil
304L stainless steel is remarkably similar to 304 stainless steel in their chemical composition with one key difference.
Product Parameters
|
Product Name |
304L Stainless Steel Coil |
|
Type |
Steel Coil |
|
Thickness |
2.5mm-10.0mm |
|
Length |
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
|
Width |
610mm-2000mm |
|
Standard |
ASTM, AISI, JIS, GB, DIN, EN, etc. |
|
Surface |
BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
|
Scope of Application |
Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc. |
|
Certificate |
ISO, SGS, BV, etc. |
|
Production Technology |
Hot Rolling, Cold Rolling |
|
Edge Processing |
Edging, Trimming |
Chemical Composition
|
C |
Si |
Mn |
Cr |
Ni |
S |
P |
|
≤ 0.03 |
≤1.0 |
≤ 2.0 |
18.0～20.0 |
8.0～12.0 |
≤ 0.03 |
≤ 0.035 |
Mechanical Properties
|
Tensile Strength Kb (MPa) |
Yield Strength σ0.2 (MPa) |
Elongation D5 (%) |
Hardness |
|
≥ 520 |
≥ 205 |
≥ 40 |
≤ 187HB ;≤ 90HRB;≤ 200HV |
Physical Performance
|
Density(g/cm³) |
Modulus of Elasticity(Gpa) |
Coefficient of Thermal Expansion(10-6/°C) |
Coefficient of Thermal Conductivity(W/m*K) |
Resistivity(ΜΩ. cm) |
|
8.03 |
193 |
16.9 |
16.2 |
72 |
Surface Selection
