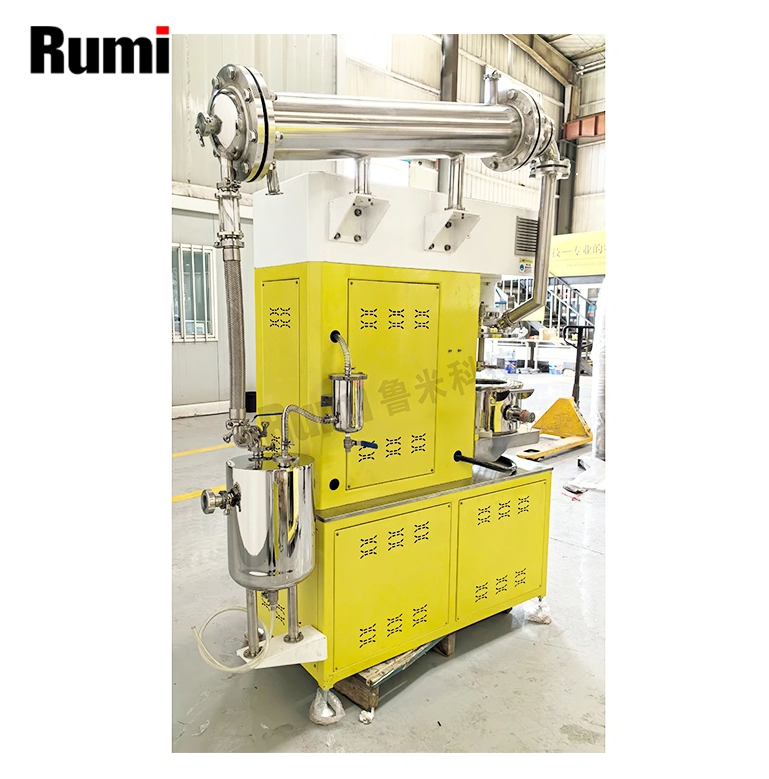

5L EX-Proof Vacuum Butterfly Reactor Mixer

Key Features

• Vacuum Processing System
  Integrated vacuum system provides a maximum vacuum level of -0.098 MPa, suitable for processing applications requiring controlled vacuum conditions.

• Butterfly Agitator with PTFE Scraper
  Equipped with a butterfly impeller and PTFE scraper to promote material movement while helping reduce material buildup on the tank wall.

• Jacketed Processing Tank
  The tank features a jacketed construction that allows heating or cooling media to circulate through the jacket for controlled process temperature management.

• Horizontal Condenser
  Fitted with a horizontal condenser to support efficient vapor condensation during vacuum operation.

• 316L Stainless Steel Contact Surface
  Material-contact components are constructed from 316L stainless steel, providing excellent corrosion resistance and reliable performance for demanding processing environments.

• Hydraulic Tank Lifting Mechanism
  The tank adopts a hydraulic lifting system for smooth vertical movement, providing greater convenience during material discharge, cleaning, and equipment maintenance.

Technical Configuration

Design Highlights

High Vacuum Performance
Maximum vacuum of -0.098 MPa supports controlled vacuum processing.

Temperature Control
The jacketed tank enables the circulation of heating or cooling media according to process requirements.

Enhanced Mixing Configuration
The butterfly impeller works together with the PTFE scraper to improve material circulation and reduce residue along the tank wall.

Durable Wetted Construction
316L stainless steel contact surfaces provide reliable corrosion resistance and long-term suitability for industrial processing.

Convenient Hydraulic Lifting
The hydraulic lift structure facilitates tank positioning and simplifies routine discharge, cleaning, and maintenance operations.
