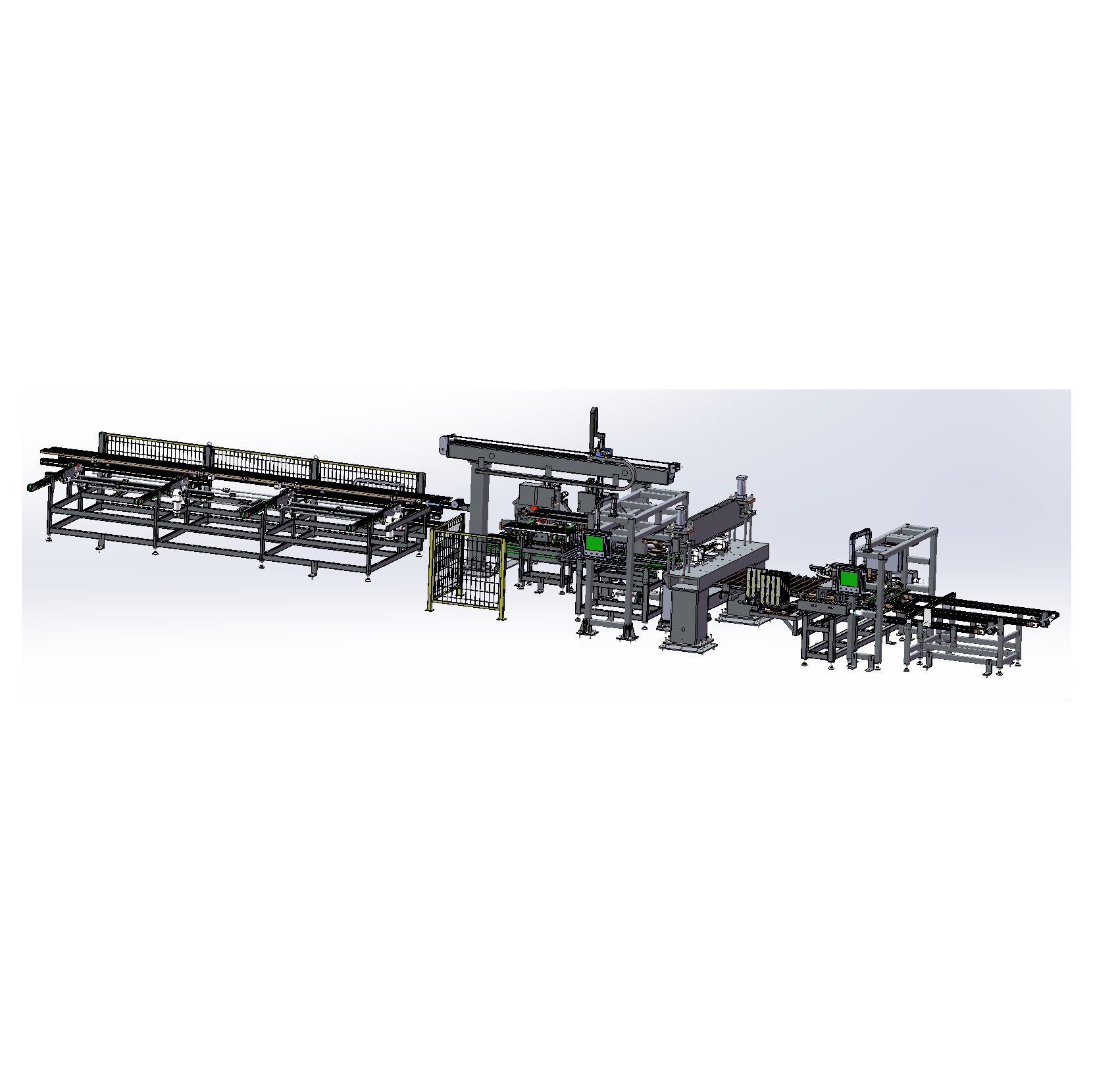

CLW-7000 automatic stamping production line of photovoltaic frame
CLW-7000 automatic stamping production line of photovoltaic frame is the 7th generation product launched by our company in 2025.
https://www.calowenauto.com/clw-7000-automatic-stamping-production-line-of-photovoltaic-frame.html
CLW-7000 automatic stamping production line of photovoltaic frame is the 7th generation product launched by our company in 2025.After more than 1 year of unremitting efforts,accumulation and reference,the company's R&D team has successfully developed anew generation of automatic stamping production line of photovoltaic frame,which has been significantly improved in production efficiency,product quality,energy saving and environmental protection, intelligent control and other aspects compared with the previous generation of production line.
Technical parameters
|
Name |
Automaticstampingproduction lineofphotovoltaicframe (longframe) |
Automaticstampingproduction lineofphotovoltaicframe (shortframe) |
|
Model |
CLW-25 |
CLW-15 |
|
Processinglengthrange(mm) |
1600～2500 |
990～1500 |
|
Processingsectionrange(mm) |
Bsidewidth:30-40,Csidewidth:10-35 |
|
|
Workingbeat(s) |
≤1.5 |
≤1.5 |
|
Angelaccuracy(°) |
±0.1 |
±0.1 |
|
Cuttinglengthaccuracy(mm) |
±0.15 |
±0.15 |
|
Qualifiedrateofprocessing |
99.8% |
99.8% |
|
Staffing(person/station) |
2.5 |
2.5 |
|
Ratedpower(kw) |
24 |
24 |
|
Externaldimensions(mm) |
16000×6000×2850 |
16000×6000×2850 |
Product advantages
1. The feeding method of sawing unit adopts the pulling material system,which improves the adaptability for twisted profiles.
2. The feeding of sawing unit is driven by electric cylinder,which effectively improves the processing quality of the workpiece.
3. The stamping molds only need to replace the punch head and inserted plate,which effectively reduces the costs.
4. Intelligent detection including length,mounting hole,bending,twisting,aluminium angle and water leakage hole detection.
5. Five sets of aluminium angle cartridges are set on one side of short frame stamping unit,and the aluminium angle capacity is greatly increased.
6. The finished products and defective products are automatically separated by upper and lower double-layer conveyor belt.
