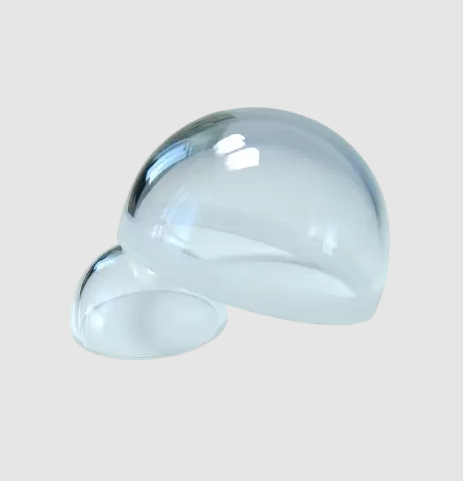

Domes of CNC Special Shape

Optical domes with customized geometries are commonly referred to as non-standard optical domes. Unlike standard hemispherical components, these parts are no longer purely optical elements. In practical applications, they are closely integrated with mechanical housing design, installation methods, sealing requirements, and overall system spatial constraints.

ECOPTIK is capable of using high-precision CNC machining centers to perform cold machining on pre-formed glass or crystal blanks, enabling the production of complex and highly customized dome geometries with strict dimensional control.

Engineering Considerations and Key Structural Types

Flanged Dome Structure

Structural Characteristics:
A flange structure is added around the edge of a standard hemispherical dome, typically designed as a flat circular ring with mounting holes.

Functional Features:

• Simplified installation and mechanical fastening
  The flange allows the dome to be directly secured to equipment housings using bolts or screws.

• Reliable sealing interface
  The flat flange surface works together with sealing gaskets to achieve stable environmental or pressure sealing performance.

• Improved mechanical strength
  The reinforced edge structure enhances resistance to installation torque and external mechanical stress.

Grooved (Slotted) Dome

Structural Characteristics:
Precision grooves are machined into specific positions on the dome surface, commonly near the equatorial region or designated mounting zones.

Functional Features:

• Positioning and installation alignment
  Works with retaining rings or locking components inside the housing for fast assembly and accurate positioning.

• Anti-rotation control
  Prevents unintended rotation of the dome during operation, which is critical in directional or precision optical systems.

Drilled Dome Design

Structural Characteristics:
Specific holes are precisely drilled at defined positions on the dome surface.

Functional Features:

• Sensor integration capability
  Provides access points for temperature, pressure, or other auxiliary sensors.

• Pressure equalization
  Helps balance internal and external air pressure in non-sealed systems, reducing risks of fogging or structural deformation.

• Cable routing support
  Allows internal wiring paths for heating elements or electronic modules.

• Installation alignment assistance
  Can be used as positioning or locating points during assembly.

Cut-Edge Dome

Structural Characteristics:
Part of the spherical surface is removed through precision cutting, forming flat or beveled edges instead of a complete hemisphere.

Functional Features:

• Adaptation to limited installation space
  The modified geometry allows integration into compact or constrained mechanical layouts.

• Field-of-view control
  Removes unnecessary optical coverage areas to avoid interference from surrounding structural components.

• Reference surface creation
  The flat or beveled section can serve as a mounting datum for positioning, bonding, or alignment during assembly.

CNC Precision Machining Capability (ECOPTIK)

ECOPTIK utilizes advanced CNC machining systems to process pre-formed glass and crystal substrates with high precision. This enables the production of:

• Complex customized dome geometries

• Tight tolerance control for optical and mechanical integration

• Stable repeatability for batch production

• High surface quality suitable for optical-grade applications

Through precise cold machining techniques, ECOPTIK ensures that non-standard optical domes meet both optical performance requirements and mechanical integration needs in advanced engineering systems.
