FPC6500 Fire Pump Unit Controller for Pump Management

Intelligent Control for Engine-Driven Fire Pumps

The FPC6500 fire pump unit controller is designed to manage and monitor engine-driven fire pump units in fire protection applications. Combining automatic start and stop control, operating data display, alarm functions, and multiple communication interfaces, it helps operators monitor equipment status and manage pump operation more efficiently. Its compact design and configurable parameters make it suitable for different engine-driven pump configurations.

Automatic Start and Stop Control

The controller supports automatic start and stop functions for fire pump units, helping reduce the need for constant manual intervention. By integrating control and monitoring capabilities into one unit, it provides a practical interface for managing pump operation. Configurable parameters allow users to adjust relevant settings according to equipment requirements, supporting consistent operation and easier maintenance.

Clear LCD Display and Operating Data Monitoring

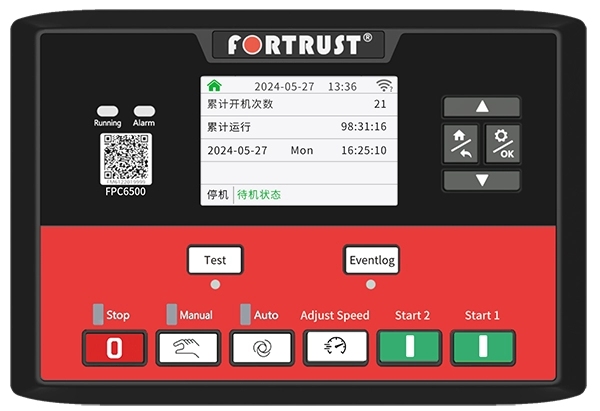

Equipped with a large LCD screen, the controller displays relevant engine and pump operating information in an easy-to-read format. Chinese and English language options support use in different working environments. Operators can check operating conditions through the display and use the available monitoring functions to assess equipment status.

The controller also supports parameter measurement and threshold configuration. These functions help maintenance personnel review operating data and identify conditions that may require attention.

Alarm Functions and Engine Compatibility

The FPC6500 controller integrates alarm and protection functions to support fire pump operation management. It is designed for pump units driven by both electronically controlled and non-electronically controlled engines, offering flexibility for different equipment configurations.

Its CANBUS communication interface supports the SAE J1939 protocol, enabling communication with compatible electronic engines. Actual compatibility depends on the engine configuration and communication requirements of the application.

Multiple Communication and Configuration Options

The controller provides CANBUS (SAE J1939), RS485, USB, and Wi-Fi interfaces for communication, configuration, and monitoring. Users can adjust many parameters through the front panel, while RS485 or USB connections allow a PC to be used for monitoring and configuration.

Wi-Fi functions support viewing operating curves and assisting with fault diagnosis. The controller also supports calibration parameter adjustments through a Wi-Fi application, providing additional convenience for technical personnel during setup and maintenance.

Compact Design for Panel Installation

Designed for panel mounting, the controller measures approximately 183 × 137 mm at the module level, with a suggested panel cutout of 184 × 138 mm. Its compact dimensions help simplify installation planning in compatible control panels.

The controller operates on a continuous DC supply of 8.0–35.0 V and has an overall power consumption of less than 3 W. Its stated operating temperature range is -25°C to 70°C, with a relative humidity range of 20%–90%. The protection rating is IP55 when the waterproof rubber ring is installed and IP42 without it.

Key Technical Specifications

• Controller model: FPC6500 product page; confirm the model number against the specification table before ordering

• Processor: 32-bit microprocessor

• Display: Large LCD with Chinese and English options

• Supply voltage: DC 8.0–35.0 V

• Power consumption: Less than 3 W

• Communication interfaces: CANBUS (SAE J1939), RS485, USB, and Wi-Fi

• Operating temperature: -25°C to 70°C

• Protection rating: IP55 with waterproof rubber ring; IP42 without it

• Panel cutout: Approximately 184 × 138 mm

A Practical Controller for Fire Pump Operation

With automatic control, operating data display, alarm functions, configurable parameters, and multiple communication options, the FPC6500 fire pump unit controller provides an integrated approach to engine-driven fire pump management. Its compatibility with different engine types and compact panel-mounting design make it a practical option for suitable fire pump control applications. Before purchasing, confirm the exact model designation and verify compatibility with the engine, sensors, wiring, and required control functions.
