Mold Marking Machine for Precision 3D Laser Engraving

Product Overview

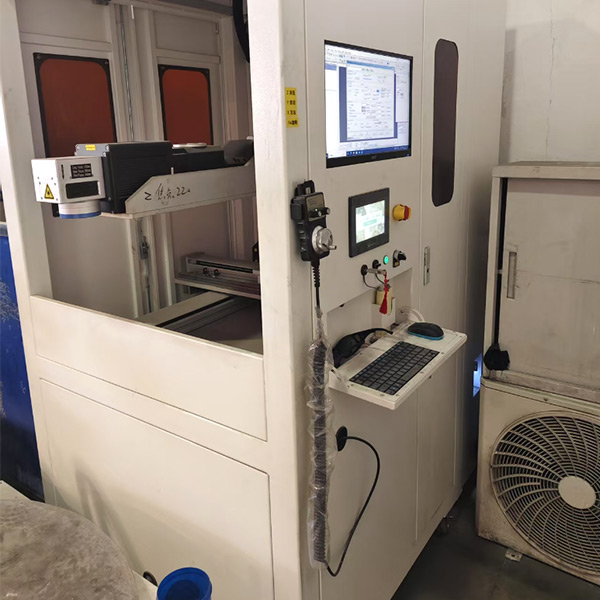

The Mold Marking Machine from MIEN is designed for precise laser marking and engraving on molds, curved components, recessed areas, and irregular three-dimensional surfaces. Equipped with three-axis dynamic focusing technology, this 3D laser marking machine automatically adjusts the focal position to accommodate changes in surface height, helping maintain consistent marking quality across complex geometries.

Unlike conventional flat-surface marking equipment, this solution supports detailed engraving on steep slopes, contoured surfaces, and free-form workpieces. It produces sharp edges, clear patterns, and controlled engraving depth while helping minimize unwanted scorching when appropriate laser parameters are applied. The equipment is suitable for manufacturers seeking greater flexibility and repeatability in mold identification, product decoration, and precision component processing.

Key Features of the Mold Marking Machine

Three-Axis Dynamic Focusing Technology

The integrated dynamic focusing function adjusts the laser focal position according to workpiece height variations. This allows the machine to mark curved, recessed, and uneven surfaces without requiring constant manual refocusing. It is particularly useful for molds and components with intricate contours or multiple height levels.

Precision 3D Laser Engraving

The machine supports detailed patterns, fine text, and multi-level engraving on suitable three-dimensional surfaces. Its focusing and scanning capabilities help maintain edge definition and marking consistency across complex geometries, making it suitable for applications where appearance and dimensional detail are important.

Single-Clamping Processing

Three-dimensional workpieces can be processed in a single clamping operation when the required marking areas fall within the available working range. Reducing repeated fixture adjustments helps simplify production workflows, shorten setup time, and improve positioning consistency between marking operations.

High-Speed Galvanometer Scanning

The high-speed galvanometer scanning configuration supports efficient beam movement along programmed paths. Combined with dynamic focusing, it helps maintain suitable focus across corners, slopes, and curved contours, supporting precise marking on intricate workpiece surfaces.

Customizable Laser Power

Different molds and components require different engraving depths and surface finishes. MIEN offers customizable fiber laser power options to accommodate varying material characteristics and marking objectives. The appropriate configuration depends on the workpiece material, required depth, pattern complexity, and production conditions.

Technical Specifications

The effective marking range and engraving results depend on the selected configuration, workpiece geometry, and processing parameters. Application testing is recommended to confirm suitability for specific materials and depth requirements.

Applications Across Mold Manufacturing and Precision Industries

Injection and Extrusion Molds

The mold marking machine can engrave identification details, serial numbers, logos, and other information on suitable injection and extrusion molds. Its dynamic focusing capability helps accommodate complex mold contours and recessed areas, reducing the need for repeated manual positioning.

Automotive and Mechanical Components

Automotive parts and mechanical components may contain curved surfaces, stepped profiles, or detailed features that complicate conventional marking. Three-dimensional laser processing supports permanent identification and decorative engraving across suitable component geometries.

3C Electronics and Medical Devices

Precision components used in electronics and medical device manufacturing may require compact identification marks and consistent placement. The machine can support fine-detail marking where the material and application requirements are compatible with the selected laser configuration.

Jewelry and Decorative Engraving

For jewelry and decorative products, controlled laser marking can create intricate patterns, lettering, and surface details on suitable materials. Dynamic focusing helps accommodate curved designs and varying surface heights.

Advantages for Production Efficiency and Marking Quality

The combination of dynamic focusing and galvanometer scanning reduces dependence on manual focal adjustments when processing three-dimensional workpieces. Single-clamping operations can also minimize repeated setup procedures, helping manufacturers improve workflow efficiency and maintain more consistent marking positions.

For complex molds, these capabilities can simplify the processing of multiple marking areas while supporting detailed engraving. Actual productivity improvements depend on workpiece dimensions, pattern complexity, laser power, and production volume. Proper parameter selection and sample verification remain essential for achieving the intended depth, contrast, and surface quality.

Why Choose MIEN Mold Marking Machine?

MIEN provides 3D laser marking solutions for manufacturers handling complex molds and precision components. The mold marking machine combines dynamic focusing, high-speed scanning, a flexible marking range, and customizable laser power to accommodate diverse industrial marking requirements.

For equipment selection, buyers should provide the workpiece material, surface geometry, required marking depth, artwork, and expected production volume. These details help determine whether the available marking range and laser configuration match the intended application.

Frequently Asked Questions

What makes a mold marking machine suitable for 3D surfaces?

Three-axis dynamic focusing adjusts the laser focal position as surface height changes, allowing the machine to mark curved, recessed, and irregular workpieces more consistently.

What is the maximum marking range?

The maximum XY marking range is 200 × 200 mm, with a Z-axis adjustment range of ±25 mm. Actual coverage depends on the equipment configuration and workpiece geometry.

Can the machine perform deep engraving?

Yes. It supports engraving applications with different depth requirements through customizable laser power and suitable processing parameters. The achievable depth depends on the material and marking design.

Which industries can use this machine?

Typical applications include injection and extrusion mold manufacturing, automotive components, mechanical parts, 3C electronics, medical devices, jewelry, and decorative engraving.

Can laser power be customized?

Yes. MIEN offers customizable fiber laser power options to match different materials, engraving depths, and production requirements. Sample testing can help determine the appropriate configuration.
