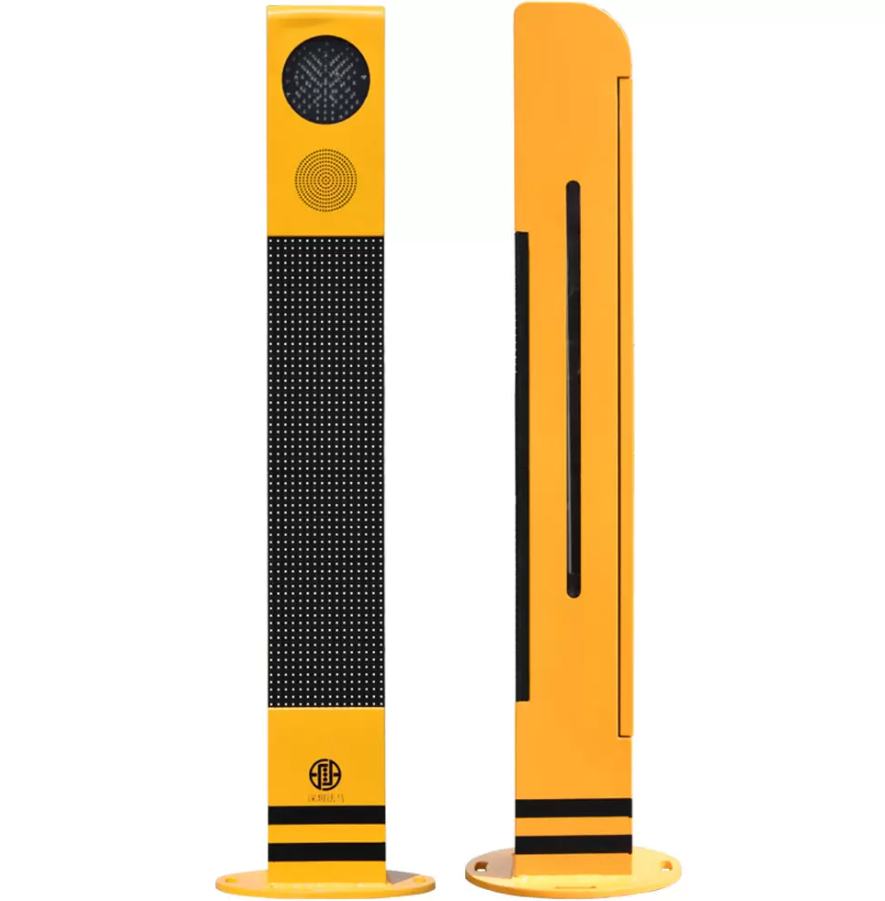

Pedestrian Light Pole with Modular Screen

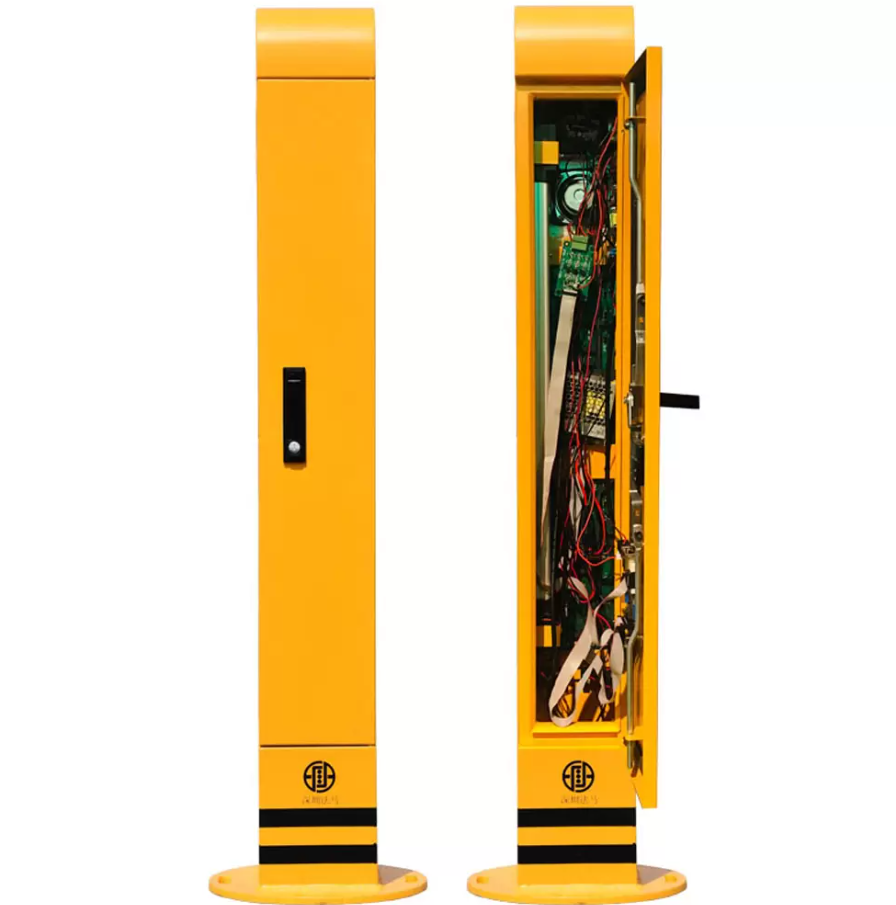

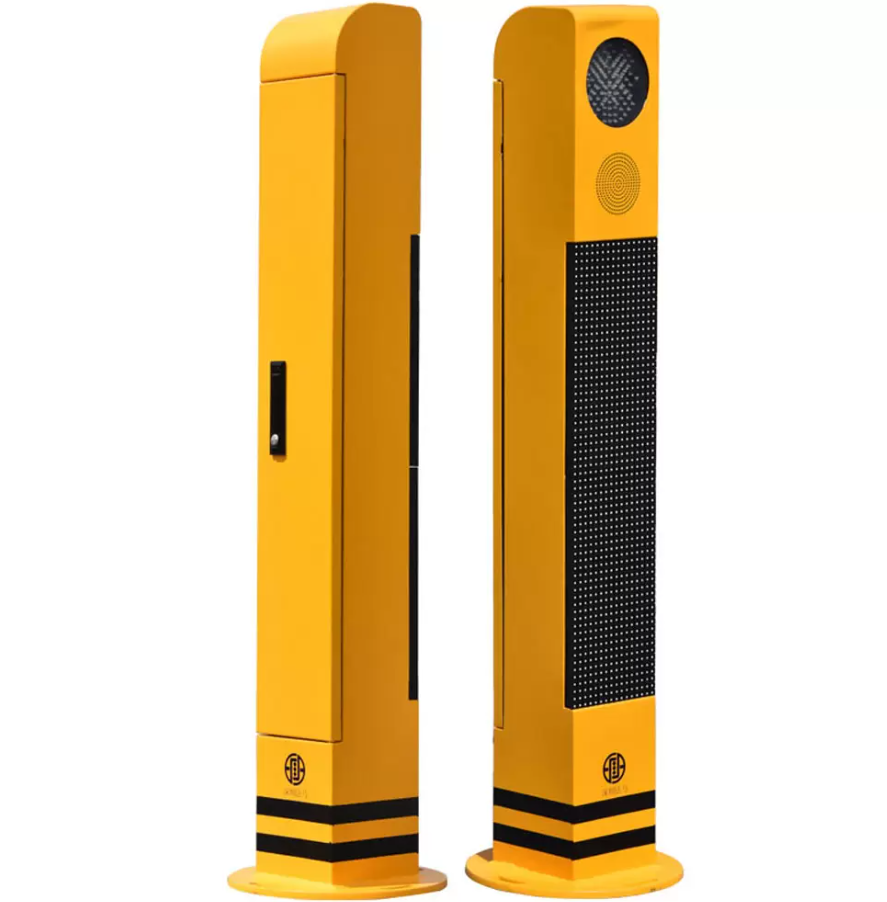

The Pedestrian Light Pole with Modular Screen is an intelligent pedestrian crossing safety system designed to be installed at both sides of zebra crossings. It works as a coordinated dual-pole structure (main pole + auxiliary pole), combining visual signaling and voice-based alerts to guide pedestrian behavior in real time.

By integrating active warning mechanisms with intelligent detection, the system helps pedestrians follow traffic signals correctly, improving crossing discipline and reducing accident risks. The built-in modular display screen also supports programmable text content, making it suitable for different urban environments and application needs.

Core Functions

1. Real-time pedestrian detection and warning

The system uses high-precision infrared beam sensing to monitor pedestrian movement at crossings. When a red-light violation or unsafe crossing behavior is detected, the system immediately triggers an audio warning.

This proactive alert mechanism helps discourage unsafe crossing behavior before accidents occur.

2. Dual safety guidance system (visual + audio)

The device combines two types of intervention:

• Visual alerts through LED signal display

• Voice prompts for immediate auditory warnings

This dual-layer communication improves user awareness and helps reinforce compliance with traffic signals, especially in high-footfall areas.

3. Customizable modular display screen

The integrated LED modular screen supports editable text content, allowing operators to adjust messages based on location requirements.

It can be used for:

• School zones (student safety reminders)

• Hospital areas (quiet and safety instructions)

• Commercial districts (traffic guidance messages)

• Public intersections (real-time safety notices)

This flexibility makes the system suitable for a wide range of urban traffic management scenarios.

Technical Specifications

Model: KH-DJ-FM03

Structure Dimensions: 1200 × 180 × 180 mm (single pole)

Power Supply: AC 85V–264V / 47–63Hz

Housing Material: Galvanized steel sheet

LED Display Module (P10 Red/Green)

• Pixel pitch: P10 mm

• Module size: 320 × 160 mm

• LED wavelength:

• Red: 625 ± 5 nm

• Green: 520 ± 5 nm

• Light intensity:

• Red ≥ 2000 cd/㎡

• Green ≥ 5000 cd/㎡

• Power consumption: ≤ 60W (max brightness mode)

System Performance

• Total power consumption: < 100W (main + auxiliary pole system)

• LED configuration:

• Red cross indicator: 57 LEDs

• Green directional arrow: 51 LEDs

• LED wavelength (system level):

• Red: 625 ± 5 nm

• Green: 505 ± 5 nm

• Brightness output:

• Red: 3500–5000 mcd

• Green: 7000–10000 mcd

• LED lifespan: ≥ 100,000 hours

Environmental & Safety Ratings

• Insulation resistance: > 2MΩ

• Operating temperature range: -40°C to +80°C

• Relative humidity tolerance: ≤95% RH

• Protection rating: IP55 (dust and water resistant)

Infrared Detection System

• Detection range: ≤10 meters

• Designed for real-time pedestrian motion monitoring at crossing zones

Visibility Performance

• Daytime visual recognition distance: ≥50 meters

• Ensures clear signal visibility under normal daylight conditions

Packaging Information

• Packaging type: Reinforced wooden crate

• Dimensions: 123 × 51.5 × 35 cm

• Configuration: 1 main unit + 1 auxiliary unit

• Total weight: 37.7 ± 0.5 kg (including 4.1 kg wooden crate)
