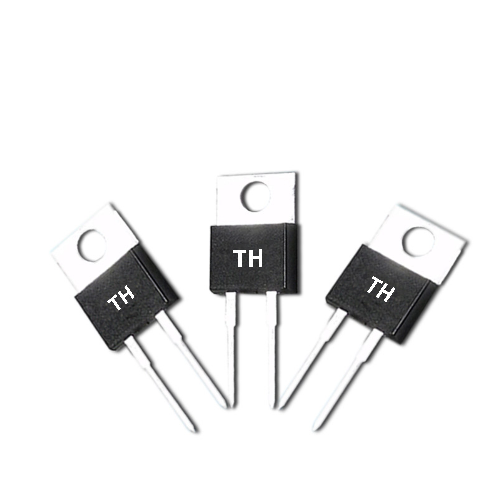

Super Fast Recovery Diode
An FRD with even shorter reverse recovery time, approaching Schottky diode performance.
| Part Number | Package | DC Reverse Voltage | Forward Current | Non-Repetitive Peak Forward Surge Current |
Reverse Current | Forward Voltage | Reverse Recovery Time | Power Dissipation | Marking |
| VR(V) | IF(A) | IFSM(A) | IR(µA) | VF(V) | Trr(nS) | PD(mW) | |||
| US1A (UF1A) | SMA(DO-214AC) | 50 | 1 | 30 | 5 | 1 | 50 | – | US1A |
| US1B (UF1B) | SMA(DO-214AC) | 100 | 1 | 30 | 5 | 1 | 50 | – | US1B |
| US1D (UF1D) | SMA(DO-214AC) | 200 | 1 | 30 | 5 | 1 | 50 | – | US1DF |
| US1G (UF1G) | SMA(DO-214AC) | 400 | 1 | 30 | 5 | 1 | 50 | – | USIJ |
| US1J (UF1J) | SMA(DO-214AC) | 600 | 1 | 30 | 5 | 1 | 50 | – | – |
| US1JL (UF1JL) | SOD-123FL | 600 | 1 | 30 | 5 | 1 | 50 | – | – |
| US1K (UF1K) | SMA(DO-214AC) | 800 | 1 | 30 | 5 | 1 | 50 | – | US1MF |
| US1M (UF1M) | SMA(DO-214AC) | 1000 | 1 | 30 | 5 | 1 | 50 | – | US2B |
| US1MF (UF1MF) | SMAF | 1000 | 1 | 30 | 5 | 1 | 50 | – | US2BF |
| US1ML (UF1ML) | SOD-123FL | 1000 | 1 | 30 | 5 | 1 | 50 | – | US2D |
| US2A (UF2A) | SMB(DO-214AA) | 50 | 2 | 50 | 5 | 1 | 50 | – | US2DF |
| US2AF (UF2AF) | SMAF | 50 | 2 | 50 | 5 | 1 | 50 | – | – |
| US2B (UF2B) | SMB(DO-214AA) | 100 | 2 | 50 | 5 | 1 | 50 | – | US2J |
| US2BF (UF2BF) | SMAF | 100 | 2 | 50 | 5 | 1 | 50 | – | US2JF |
| US2D (UF2D) | SMB(DO-214AA) | 200 | 2 | 50 | 5 | 1 | 50 | – | – |
| US2DF (UF2DF) | SMAF | 200 | 2 | 50 | 5 | 1 | 50 | – | US2M |
| US2G (UF2G) | SMB(DO-214AA) | 400 | 2 | 50 | 5 | 1 | 50 | – | US2MF |
| US2GF (UF2GF) | SMAF | 400 | 2 | 50 | 5 | 1 | 50 | – | – |
| US2J (UF2J) | SMB(DO-214AA) | 600 | 2 | 50 | 5 | 1 | 50 | – | US3B |
| US2JF (UF2JF) | SMAF | 600 | 2 | 50 | 5 | 1 | 50 | – | US3BF |
| US2K (UF2K) | SMB(DO-214AA) | 800 | 2 | 50 | 5 | 1 | 50 | – | – |
| US2KF (UF2KF) | SMAF | 800 | 2 | 50 | 5 | 1 | 50 | – | US3G |
| US2M (UF2M) | SMB(DO-214AA) | 1000 | 2 | 50 | 5 | 1 | 50 | – | US3GF |
| US2MF (UF2MF) | SMAF | 1000 | 2 | 50 | 5 | 1 | 50 | – | – |
| US3A (UF3A) | SMC(DO-214AB) | 50 | 3 | 100 | 10 | 1 | 50 | – | US3K |
| US3B (UF3B) | SMC(DO-214AB) | 100 | 3 | 100 | 10 | 1 | 50 | – | US3M |
| US3D (UF3D) | SMC(DO-214AB) | 200 | 3 | 100 | 10 | 1 | 50 | – | – |
| US3G (UF3G) | SMC(DO-214AB) | 400 | 3 | 100 | 10 | 1 | 50 | – | – |
| US3J (UF3J) | SMC(DO-214AB) | 600 | 3 | 100 | 10 | 1 | 50 | – | – |
| US3K (UF3K) | SMC(DO-214AB) | 800 | 3 | 100 | 10 | 1 | 50 | – | – |
| US3M (UF3M) | SMC(DO-214AB) | 1000 | 3 | 100 | 10 | 1 | 50 | – | – |
