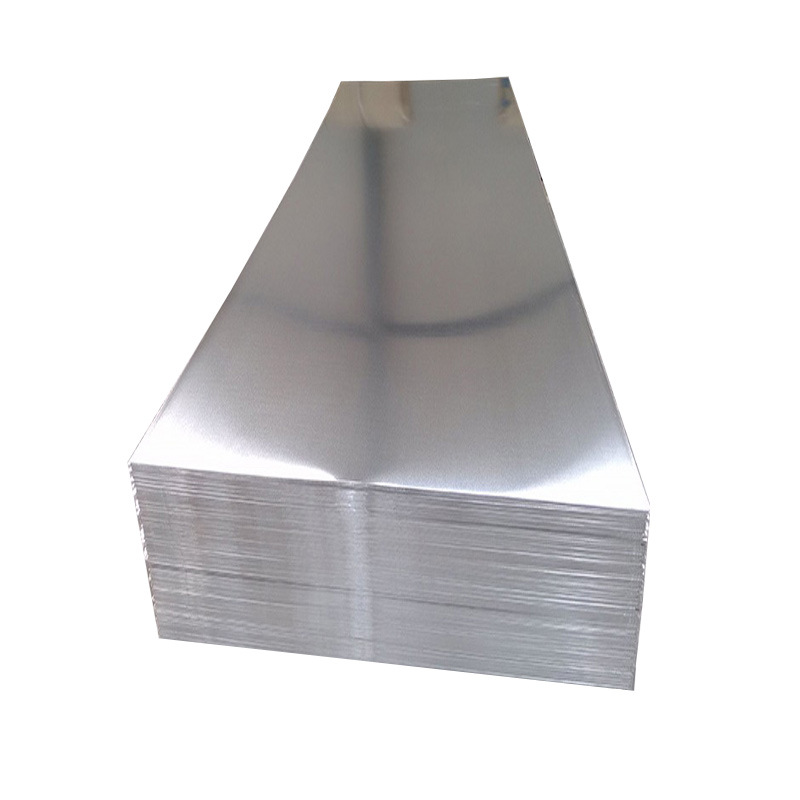

1070 Aluminum Plate
1070 belongs to the pure aluminum series alloys. The aluminum content is greater than 99.7%, and the content of other impurity elements is low.
Product Description
|
Width |
20-3000mm or Customized |
Thickness |
0.1-120mm or Customized |
|
Length |
100-12000mm or Customized |
Certificate |
ISO, SGS, BV |
|
Standard |
JIS, AISI, ASTM, GB, DIN, EN, etc. |
||
|
Brand |
1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc. |
||
|
Surface |
Coating, Embossing, Drawing, Polishing, Anodizing, etc. |
||
|
OEM Service |
Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc. |
||
|
Delivery Time |
Received 30%, After deposit 7-15 working day |
||
|
Application |
Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc. |
||
|
Sample |
Free Offers Sample |
||
|
Packaging |
Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement |
||
Chemical Composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
|
1050 |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
– |
0.05 |
0.03 |
0.03 |
– |
99.50 |
|
1060 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
– |
0.05 |
0.03 |
0.03 |
– |
99.60 |
|
1070 |
0.20 |
0.25 |
0.04 |
0.03 |
0.03 |
– |
0.04 |
0.03 |
0.05 |
– |
99.70 |
|
1100 |
0.95 Si Fee |
0.05~0.20 |
0.05 |
– |
– |
0.1 |
– |
0.05 |
0.15 |
99.0 |
|
|
2014 |
0.5~1.2 |
0.7 |
3.9~5.0 |
0.4~1.2 |
0.2~0.8 |
0.10 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
|
2017 |
0.2~0.8 |
0.7 |
3.5~4.5 |
0.4~1.0 |
0.4~0.8 |
0.10 |
0.25 |
0.15 |
0.05 |
0.15 |
91.5 – 95.5 |
|
2024 |
0.50 |
0.50 |
3.8~4.9 |
0.3~0.9 |
1.2~1.8 |
0.10 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
|
3003 |
0.60 |
0.70 |
0.05~0.20 |
1.0~1.5 |
– |
– |
0.10 |
– |
0.05 |
0.15 |
Margin |
|
3A21 |
0.60 |
0.70 |
0.20 |
1.0-1.6 |
0.05 |
– |
0.15 |
0.1-0.2 |
– |
– |
Margin |
|
3004 |
0.30 |
0.70 |
0.25 |
1.0~1.5 |
0.8~1.3 |
– |
0.25 |
– |
0.05 |
0.15 |
Margin |
|
3005 |
0.60 |
0.70 |
0.30 |
1.0~1.5 |
0.2~0.6 |
0.10 |
0.25 |
0.10 |
0.05 |
0.15 |
Margin |
|
3105 |
0.60 |
0.70 |
0.30 |
0.3~0.8 |
0.2~0.8 |
0.20 |
0.40 |
0.10 |
0.05 |
0.15 |
Margin |
|
5005 |
0.30 |
0.70 |
0.20 |
0.20 |
0.5~1.1 |
0.1 |
0.25 |
– |
0.05 |
0.15 |
Margin |
|
5052 |
0.25 |
0.40 |
0.10 |
0.10 |
2.2~2.8 |
0.15~0.35 |
0.10 |
– |
0.05 |
0.15 |
Margin |
|
5754 |
0.40 |
0.40 |
0.10 |
0.50 |
2.6~3.6 |
0.30 |
0.20 |
0.15 |
0.05 |
0.15 |
Margin |
|
5A05 |
0.50 |
0.50 |
0.10 |
0.3-0.6 |
4.8-5.5 |
– |
0.20 |
– |
0.05 |
0.05 |
Margin |
|
5083 |
0.40 |
0.40 |
0.10 |
0.4~1.0 |
4.0~4.9 |
0.05~0.25 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
|
6061 |
0.40~0.8 |
0.70 |
0.15~0.4 |
0.15 |
0.8~1.2 |
0.04~0.35 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
|
6082 |
0.70~1.3 |
0.50 |
0.10 |
0.4~1.0 |
0.6~1.2 |
0.25 |
0.20 |
0.10 |
0.05 |
0.15 |
Margin |
|
7075 |
0.40 |
0.50 |
1.2~2.0 |
0.30 |
2.1~2.9 |
0.18~0.28 |
5.1~6.1 |
0.20 |
0.05 |
0.15 |
Margin |
Mechanical Properties
|
Tensile Strength (MPa) |
Test Stress (MPa) |
Hardness HB |
Elongation Rate (%) |
|
95-135 |
≥ 35 |
28 |
10 |
Physical Performance
|
Density |
Melting Point |
Thermal Expansion |
Thermal Conductivity |
Resistivity |
|
2.73 Kg/m³ |
655 °C |
23.1(10 -6/℃) |
190 W/m.K |
0.034× 10-6Ω.m |
Annealing State
|
Brand |
Annealing State |
|
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
|
3xxx: 3003, 3004, 3005, 3105 |
|
|
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
|
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
|
2xxx: 2024 |
T3, T351, T4 |
|
7xxx: 7075 |
T6, T651 |
Scope of Application
|
Aluminum Uses And Application Area |
|
|
Food Packaging |
Beverage can ends, cans, bottle caps, etc. |
|
Building |
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
|
Transportation |
Auto parts, passenger car bodies, aviation ships and air cargo containers. |
|
Electronic Equipment |
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
|
Consumer Goods |
Umbrellas, cooking utensils, sports equipment, etc |
|
Other |
Military, color coated aluminum plate, etc. |
