Wujiang Hongcheng Electric Heating Equipment Co., Ltd. delivers industrial-grade ceramic heater solutions engineered for precision heat treatment, pre-weld preheating, and post-weld stress relief across petrochemical, power, and heavy manufacturing sectors. With surface temperatures reaching up to 1,000°C (theoretical maximum 1,050°C), Hongcheng ceramic heaters combine oxide lead ceramic insulation, nickel-chromium heating wire, and flexible mechanical design to meet the most demanding industrial thermal processing requirements.

Product Series: Industrial Ceramic Heaters

Hongcheng’s ceramic heater lineup is purpose-built for localized thermal processing in heavy industry. Each series addresses a specific pipe diameter range, component geometry, and operational environment, ensuring precise, uniform heat delivery across welded joints, pressure vessels, and pipeline systems.

LCD Crawler / Caterpillar Ceramic Heater

Series Overview

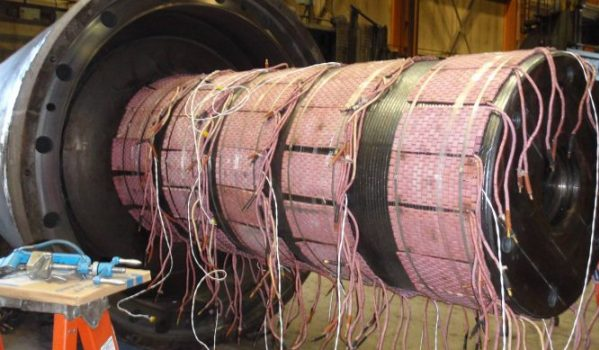

The LCD Crawler Ceramic Heater — also known as the caterpillar ceramic heater — is Hongcheng’s flagship flexible heating element designed for large-diameter vessels, pressure tanks, and complex pipeline geometries. Its articulated ceramic block construction allows the heater to be spliced, bent, or wound to conform to irregular surfaces, making it the preferred ceramic heater solution for on-site heat treatment of spherical tanks, towers, and large-diameter weldments.

Key Technical Specifications

• Insulation Material: Oxide lead ceramic with high-strength construction and superior thermal radiation properties
• Heating Element: Nickel-chromium heating wire with new-process welded joints for extended service reliability
• Maximum Surface Temperature: 1,000°C (theoretical maximum: 1,050°C)
• Heating Method: Resistance heating combined with infrared (radiation) thermal output
• Mechanical Flexibility: Splicing, bending, and winding configurations supported to fit complex geometries
• Power Density: High power density enabling rapid heating speeds that exceed induction heating methods
• Compatible Sensors: Standard K-type (Nickel-Chromium / Nickel-Silicon) thermocouples
• Compatible Controllers: DKW series intelligent temperature control boxes; supports various voltage inputs

Differentiated Technical Advantages

• Efficiency: Heating speed surpasses induction methods due to high power density ceramic element design
• Thermal Radiation: Oxide lead ceramic blocks emit superior radiant heat for even thermal distribution across workpiece surfaces
• Structural Adaptability: Articulated crawler design accommodates pipes, vessels, and structural components of varying diameters and geometries
• System Integration: Seamlessly pairs with the DKW/Intelligent Temperature Control Box for automated heating cycle management, digital temperature setting, and silicon-controlled rectifier switching

Primary Applications

• Pre-weld preheating for large-diameter pipeline welds
• Post-weld heat treatment (PWHT) and stress relief for pressure vessels
• Localized heat treatment for spherical tanks and column towers
• Overall heat treatment for electric desalting tanks
• On-site heat treatment in petrochemical refinery construction
• Structural component stress relief in metallurgical and shipbuilding industries

SCD Rope-Type Ceramic Heater

Series Overview

The SCD Rope-Type Ceramic Heater is Hongcheng’s specialized ceramic heater solution for small-diameter pipes, elbow joints, and geometrically irregular weld areas where crawler-type heaters cannot conform effectively. Its rope construction achieves a minimum bending diameter of 70mm, making it indispensable for power plant maintenance, pipeline head heat treatment, and precision joint thermal processing.

Key Technical Specifications

• Minimum Bending Diameter: 70mm — suitable for small-bore pipeline and irregular joint heat treatment
• Heater Form Factor: Flexible rope construction
• Primary Use Case: Small-diameter pipe preheating and weld joint heat treatment
• Compatible Sensors: Standard K-type (Nickel-Chromium / Nickel-Silicon) thermocouples
• Compatible Controllers: DKW series intelligent temperature control boxes

Differentiated Technical Advantages

• Ultra-Compact Bending Radius: 70mm minimum bend diameter enables heat treatment in confined pipeline configurations and tight-radius elbows
• Geometric Versatility: Rope form factor adapts to irregular joints and small-bore fittings where standard heating pads are impractical
• Precision Thermal Delivery: Focused heat concentration on small joint areas ensures consistent thermal cycling for weld integrity

Primary Applications

• Small-diameter pipeline preheating and post-weld stress relief
• Power plant maintenance — pipeline head heat treatment
• Elbow, tee, and irregular weld joint localized heating
• Heat treatment in confined-space industrial environments
• Petrochemical and natural gas pipeline maintenance operations

Application Categories for Ceramic Heaters

Petrochemical & Refinery Heat Treatment

Hongcheng ceramic heaters have been validated across flagship refinery projects in China and internationally. Partnerships with Sinopec No. 10 Company (Fujian Refinery, 2008), Shenghong Petrochemical (Lianyungang, 2020 — Fortune Global 500), and Zhuhai Zhonggu Petrochemical (2018) confirm the reliability of LCD caterpillar ceramic heaters under continuous high-temperature refinery operations.

Natural Gas Processing & Pipeline Systems

The SCD Rope-Type and LCD Caterpillar Ceramic Heaters have been deployed in Asia’s largest natural gas facility — the Sichuan Puguang Natural Gas Purification Plant (2009) — validating performance under extreme thermal cycling requirements for large-bore and small-bore gas pipeline systems.

Power Generation — Thermal, Hydro & Nuclear

Ceramic heater solutions from Hongcheng have supported infrastructure-critical projects including the Three Gorges Project, Ertan Hydropower Station, and Xiaolangdi Hydropower Station, demonstrating long-term thermal performance in large weld structures and pressure vessels used in power plant construction.

International Energy Projects

In 2019, Hongcheng supplied specialized heat treatment equipment — including ceramic heater systems — for the Shandong Power Construction Power Plant Project in Saudi Arabia, confirming the product line’s suitability for international export standards and extreme-environment operation.

Metallurgy & Heavy Structural Manufacturing

Ceramic heaters have supported Baosteel and Ansteel in stress relief operations for large structural components, extending equipment service life through optimized thermal processing cycles — a key application for LCD Caterpillar Ceramic Heaters with their high power density and flexible geometry.

Shipbuilding & Marine Engineering

Hongcheng has supplied specialized heating solutions — including ceramic heater systems — to Nantong CIMC Sinopacific Offshore & Engineering for vessel construction heat treatment, confirming marine-environment suitability of the ceramic heater product line.

Research & Advanced Materials Testing

Customized ceramic heater solutions, including tracked heaters, have been supplied to Beijing University of Technology for advanced material experiments requiring precise temperature control — showcasing the LCD series’ capability in research-grade thermal applications.

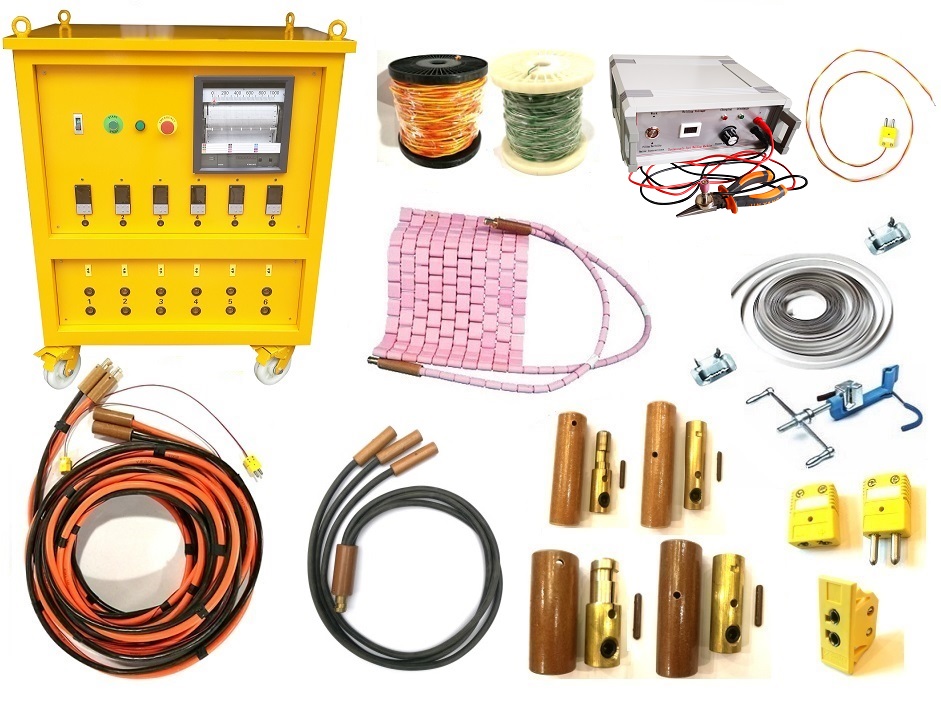

Ceramic Heater System Integration

Compatible Temperature Control Equipment

Hongcheng ceramic heaters are designed for seamless integration with the DKW / Intelligent Temperature Control Box series:

• Control Architecture: PC-104 industrial computer-based DKW temperature control box
• Instrumentation: FUSI-PXR series digital instrumentation for automated temperature setting and control
• Switching Technology: Silicon-controlled rectifier (SCR) automatic switching for precise output regulation
• Voltage Compatibility: Temperature control units support connection with various voltage ceramic heaters
• Sensor Standard: K-type (Nickel-Chromium / Nickel-Silicon) thermocouples for accurate surface temperature measurement

Heating Technology Overview

| Heating Method | Technology Type | Application |
|—|—|—|
| Resistance Heating | Ceramic / Quartz Element | Pre-weld preheating, PWHT |
| Infrared Heating | Radiation (Ceramic Block) | Surface-level thermal treatment |
| Electromagnetic Heating | Induction | Supplementary heating option |

Technical Support & Services

Engineering Services for Ceramic Heater Applications

Hongcheng provides full-scope heat treatment engineering services, not limited to product supply:

• On-Site Heat Treatment Execution: Specialized engineering team for local or overall heat treatment of large weldments, spherical tanks, columns, and towers
• Pre-Weld Preheating Services: High-efficiency preheating using ceramic heaters to eliminate moisture and achieve required preheat temperatures before welding
• Post-Weld Stress Relief (PWHT): Automated thermal cycling using DKW-controlled ceramic heater systems to achieve full stress normalization per industry codes
• Customized Ceramic Heater R&D: Tailored heater designs for unique shapes, sizes, and temperature parameters — serving both industrial clients and research institutions

Operational Safety & Guidelines

Hongcheng provides comprehensive operational guidelines for ceramic heater use:

• Electrical leakage prevention protocols
• Operator safety procedures for high-temperature operations
• Direct factory-level technical support through dedicated account managers

Company Profile & Industry Credibility

Wujiang Hongcheng Electric Heating Equipment Co., Ltd.
High-Tech Industrial Electric Heating Equipment Manufacturer

• Headquarters: Longnan Village, Meiyan, Pingwang Town, Wujiang District, Suzhou, Jiangsu Province, China
• Designation: Recognized High-Tech Enterprise
• Research Partnership: Long-term strategic technical collaboration with Zhejiang University for advanced thermal technology development
• Market Reach: Ceramic heater products (LCD Caterpillar series) exported to international markets including Saudi Arabia
• Project Heritage: Decades of participation in China’s national key infrastructure projects — Three Gorges, Ertan, Xiaolangdi, Puguang, and international energy projects

Industries Served:
Petrochemical · Natural Gas · Power Construction (Thermal / Hydro / Nuclear) · Metallurgy · Shipbuilding · Aerospace · Research & Education

Key Strategic Partners:
Sinopec · CNOOC · Shenghong Petrochemical (Fortune Global 500) · Baosteel · Ansteel · Nantong CIMC Sinopacific · Beijing University of Technology · BUAA · Zhejiang University
