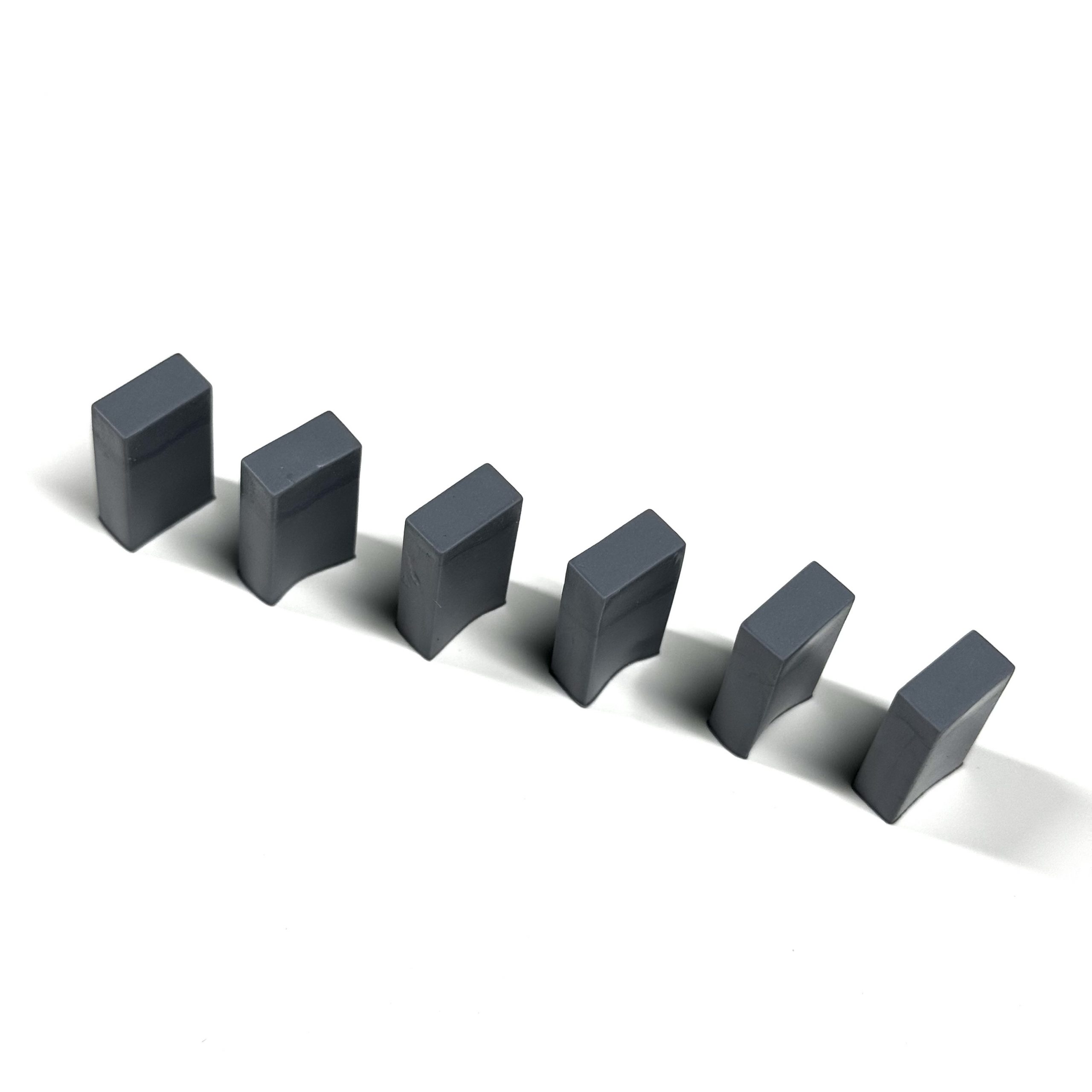

MT-TO3PA Silicone Cap Sleeve

ZS-MT-3PA is a high-performance silicone cap sleeve designed with a composite structure of silicone rubber and glass fiber, manufactured through a specialized processing technique. This engineered construction provides a stable balance of thermal conductivity, electrical insulation, mechanical strength, and vibration resistance, making it suitable for demanding electronic and power control environments.

Unlike conventional insulating materials, this silicone-based solution is optimized for direct installation on heat pipe systems and semiconductor mounting points. Its structural integrity and thermal behavior allow it to maintain performance under continuous thermal cycling, while also improving assembly efficiency in compact electronic layouts.

Engineered Structure and Functional Design

The material system of this silicone cap sleeve combines flexible silicone with reinforced glass fiber to enhance durability and thermal stability. This hybrid structure ensures consistent performance even under mechanical stress or prolonged thermal exposure.

The product is specifically developed for applications requiring:

• Stable thermal conduction under load conditions

• High dielectric insulation for safety-critical systems

• Mechanical shock absorption in vibration-prone environments

• Simplified installation on heat dissipation assemblies

Its design also supports low-stress mounting scenarios, making it suitable for sensitive semiconductor components where excessive mechanical force must be avoided.

Recommended Application Areas

ZS-MT-3PA is widely used in power electronics and semiconductor thermal management systems. It is especially effective in components where both heat dissipation and electrical isolation are required simultaneously.

Typical applications include:

• Heating transistors

• Diodes and triodes

• IGBT field-effect transistors

• Power conversion and control modules

• Heat pipe-based thermal assemblies

The silicone cap sleeve structure ensures stable contact with heat-generating devices while maintaining long-term reliability in continuous operation environments.

Material Performance Characteristics

This product integrates multiple functional advantages within a single material system. Each property is designed to support stable operation in industrial-grade electronic systems.

Key performance features include:

• Thermal conductivity: 1.0 W/m·K for efficient heat transfer

• Electrical insulation strength: 3.0 KV/mm voltage endurance

• Operating temperature range: -30°C to 200°C

• Flame resistance rating: UL-94 V-0 compliant

• Mechanical strength: tensile strength above 180 kg/cm²

• Hardness: 85 ± 5 Shore A for balanced flexibility and support

These parameters ensure that the silicone cap sleeve maintains structural and functional integrity even under long-term thermal and electrical stress.

Thermal and Electrical Stability

In power semiconductor applications, stable thermal behavior is essential to prevent performance degradation and system failure. This silicone cap sleeve provides a consistent thermal interface that reduces localized overheating while maintaining electrical isolation between conductive components.

The combination of silicone and glass fiber reinforcement enhances dimensional stability, preventing deformation under repeated heating and cooling cycles. This contributes to improved system reliability and reduced maintenance requirements in industrial environments.

Mechanical Protection and Assembly Efficiency

Beyond thermal management, ZS-MT-3PA also serves as a protective interface layer. Its shock-absorbing characteristics help reduce mechanical stress on delicate semiconductor structures during operation and assembly.

The product is designed for direct installation on heat pipe systems, which simplifies integration into existing thermal architectures. This reduces assembly complexity and improves manufacturing efficiency, particularly in high-volume production environments.

Dimensional Specifications (TO-3PA Series)

The silicone cap sleeve is available in standardized dimensions suitable for TO-3PA mounting configurations:

• DIM A: 28.5 ± 0.5 mm

• DIM B: 17.5 ± 0.5 mm

• DIM C: 5.9 ± 0.3 mm

• DIM D: 0.6 ± 0.1 mm

These precise tolerances ensure consistent fitting performance across semiconductor assembly processes and heat dissipation systems.

Engineering Value in Power Electronics

In modern power systems, thermal management directly influences efficiency, reliability, and device lifespan. This silicone cap sleeve provides a multi-functional solution that combines thermal conductivity, electrical insulation, and mechanical protection within a single component.

It is particularly valuable in environments where:

• High current switching generates significant heat

• Compact layouts limit airflow and cooling options

• Electrical isolation is critical for safety compliance

• Long-term operational stability is required

By integrating these functions, the material helps streamline system design while improving overall performance consistency.

Material Classification and Usage Guidance

The SH series thermally conductive silicone caps are recommended for low-stress applications where stable thermal transfer and insulation are required without excessive mechanical load.

ZS-MT-3PA represents a reinforced configuration within this product family, offering enhanced structural stability for industrial-grade applications while maintaining ease of assembly and consistent thermal behavior.

Summary

ZS-MT-3PA silicone cap sleeve is an engineered thermal and insulating component designed for semiconductor and power electronics applications. Its composite structure, stable thermal conductivity, and high dielectric strength make it suitable for demanding industrial environments where reliability and efficiency are essential.

With its balance of thermal management, electrical protection, and mechanical durability, it provides a practical solution for modern heat pipe and semiconductor mounting systems.
