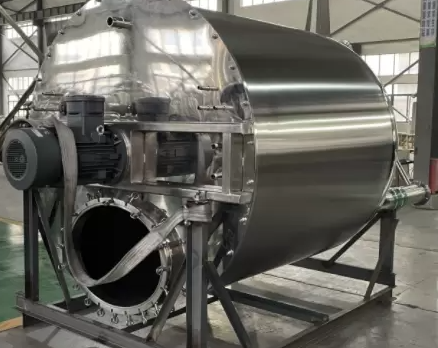

Customized size SS PROPELLER mixing tank

SS304/SS316/SS321

Single Layer: tank body

Double Layer: tank body + cooling/heating jacket OR tank body + insulation

Three Layer: tank body + cooling/heating jacket + insulation

Propeller Mixer is usually used for mixing liquid with some suspension at high speed to achieve the purpose of solution equilibrium. The principle is to generate vortices in the solution through the high-speed rotation of the small impeller.

Propeller Mixer： 1.It is made of sanitary stainless steel 316L with contacting part whilethe other pat will be ss304 2.Thevolumeis100L-10000L 3.Itis made of three-layer with whole jacket andinsulation with PU4.It is heatedby electric element ,there is a hopper at side for addingwater into the 1acket. 5.Dish top and bottom ,cylinder body Top is connected by flange foreasy open 6.As to polish, interior layer and exteri or layer all adopts 3A mirrorpolish. 7.As to transition ofinterior, we will adopt arc to make sure that thereis no deadcorner of sanitation. 8.Siemens motor. 9.The speed of Impeller is range from 0RPMto 300RPM10. There is a control panel together with the tank for controllingimpeller speed motor on-off, conductive level switch controllingelectric valve controlling, el ectric element on-off11. Legs with wheel or with adjustable feet is up to you.12.1"tri-clamp outlet,1" tri-clamp inlet,1" cleaning hole, DN 150manway 13. Configuration: outlet, spraying ball, manway, temperatureprobemotor, impell er, water inlet and outlet
