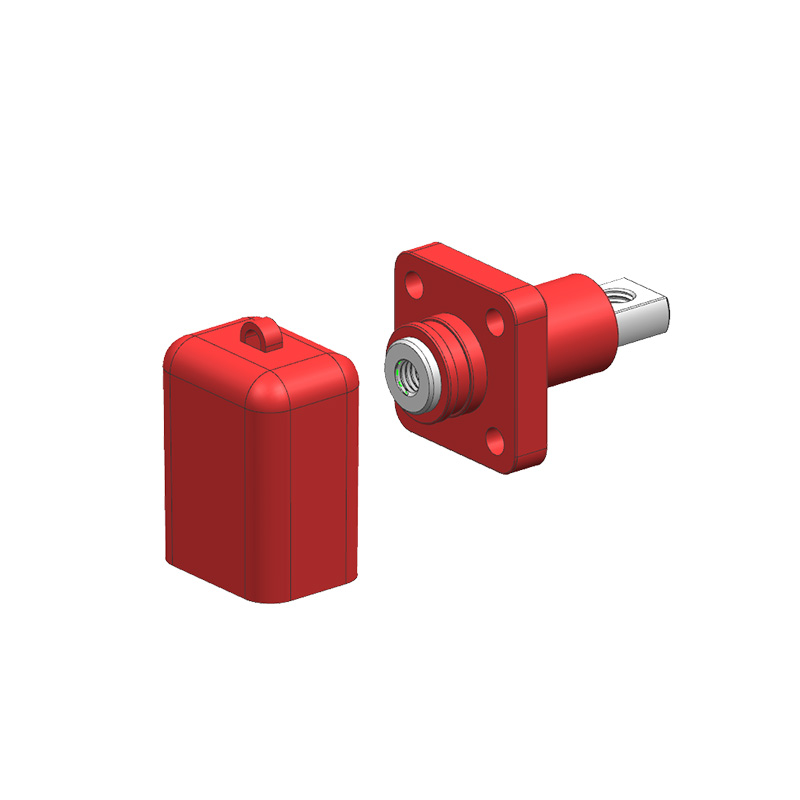

EC-E04 Energy Storage Terminal

1、Model: EC-E04
Name: Energy Storage Terminal
2、Application Scenarios: Battery connection for photovoltaic energy storage inverters and energy storage systems

Compare

1. Model

Model: EC-E04

Name: Energy Storage Terminal

2. Application Scenarios

Battery connection for photovoltaic energy storage inverters and energy storage systems.

Suitable for use in:

PV energy storage systems
Energy storage inverters
Industrial and commercial ESS applications
Battery connection interface modules

3. Main Technical Parameters

Rated current: 120A
Rated voltage: 1000V
Withstand voltage: 2500VAC
Protection level: IP67
Fire resistance rating: UL94 V-0
Operating ambient temperature: -40℃ ~ 85℃
Salt spray resistance test: 48H
Mechanical life: ≥500 mating cycles

4. Technical Advantages

▪ Simple structural design for easy installation and integration
▪ High-reliability waterproof sealing structure (IP67 protection level)
▪ Independently developed product with stable performance consistency
▪ Suitable for harsh outdoor and energy storage operating environments
▪ Enhanced durability for long-term repeated connection usage

Summary

The EC-E04 Energy Storage Terminal is designed for photovoltaic energy storage and battery connection applications, providing stable electrical performance, strong environmental resistance, and reliable long-term mechanical durability. It is suitable for energy storage systems requiring high safety, waterproofing, and stable current transmission.
