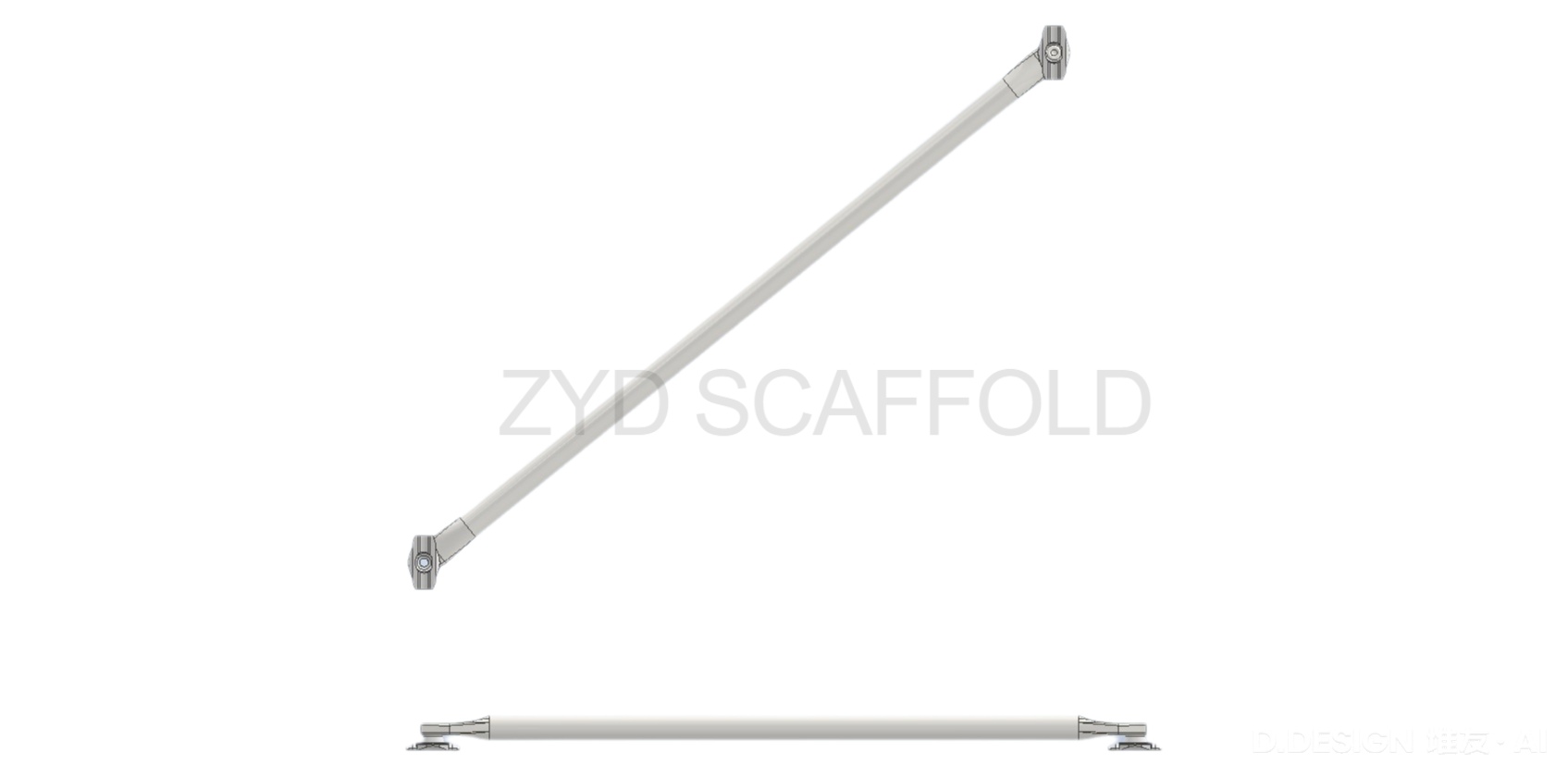

Face Brace

Cuplock scaffold is a tubular system scaffold that uses the cup and blade locking mechanism for a fast, safe, and efficient erection and dismantle process at industrial construction and maintenance pr

Compare

Cuplock face braces are used to provide lateral stability to the scaffolding system, preventing it from swaying and laterally displacing due to the weight of workers, equipment and materials during windy conditions. They are typically installed in a vertical position, parallel to the face of the building and fit different scaffold configurations.

From a structural standpoint, these braces are preferred over placing a clamp on diagonals.

Code	Description	Material	Finish
CFB1219	Face Brace 4'(1219mm) × 2.0M	48.3mmφ × 2.5mmT, Q235/Q355	H.D.G/Powder Coating
CFB1524	Face Brace 5'(1524mm) × 2.0M	48.3mmφ × 2.5mmT, Q235/Q355	H.D.G/Powder Coating
CFB1800	Face Brace 5'10"(1800mm) × 2.0M	48.3mmφ × 2.5mmT, Q235/Q355	H.D.G/Powder Coating
CFB2130	Face Brace 7'(2130mm) × 2.0M	48.3mmφ × 2.5mmT, Q235/Q355	H.D.G/Powder Coating
CFB2440	Face Brace 8'(2440mm) × 2.0M	48.3mmφ × 2.5mmT, Q235/Q355	H.D.G/Powder Coating
CFB2500	Face Brace 8'2"(2500mm) × 2.0M	48.3mmφ × 2.5mmT, Q235/Q355	H.D.G/Powder Coating
CFB2740	Face Brace 9'(2740mm) × 2.0M	48.3mmφ × 2.5mmT, Q235/Q355	H.D.G/Powder Coating
CFB3050	Face Brace 10'(3050mm) × 2.0M	48.3mmφ × 2.5mmT, Q235/Q355	H.D.G/Powder Coating
