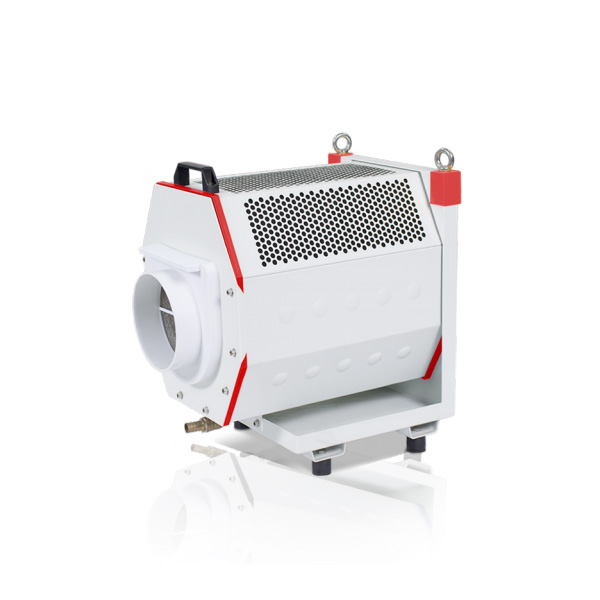

HCY-W1 Stand-Only Centrifugal Oil Mist Collector

Filtering efficiency：PM2.5，99%; PM0.5，95%
Power environment：220/380V/3P 50HZ(Can be customized)
Work noise：≤65dBA
Filter life：8 － 12 months
Way in： Horizontal
Way out：Top and side

Compare

Standard host:

Plug-type pre-filter (washable)
Centrifugal filter (washable)
Core filter cartridge (consumable)
Outlet filter cotton （consumable）

Characteristics:

Classic design―Bodi's classic
oil mist collector has a high cost
performance ratio.
Efficient filtration―Adopting
four filtering levels and layer
by layer purification,Adopting
a washable filter element
to save costs and facilitate
maintenance.
Easy installation―The top is
equipped with a handle for easy
handling and installation of the
equipment.
Anticorrosive and durable―High
quality alloy steel, the whole
machine to do phosphating antirust treatment, long service life.

Technical parameters:

Model	Airflow	Pressure	Power	Current	Filter area	Weight
Model	M³/h	Pa	W	A	M³	Kg
HCY-50W1	500	350	370	1.12	1	25
HCY-80W1	800	720	550	1.38	3	28
HCY-120W1	1200	1110	750	1.82	4	35
HCY-160W1	1600	1460	1100	2.60	6	40
HCY-200W1	2000	1850	1500	3.44	8	50

Model	L	W	H	L1	H1	A	B	øD	ød
HCY-50W1	360	300	360	40	230	148	218	100	20
HCY-80W1	400	320	380	50	260	180	250	100	20
HCY-120W1	430	380	465	62	280	180	250	150	20
HCY-160W1	460	430	510	62	302	200	300	150	20
HCY-200W1	480	500	600	70	330	200	280	200	20
