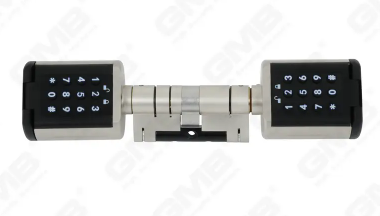

High-Security Smart Electronic Profile Cylinder – 5F01 Series

High-Security Smart Electronic Profile Cylinder

Compare

The 5F01 Series High-Security Smart Electronic Profile Cylinder combines multiple unlocking methods with IP66-rated water protection and a specified operating temperature range of -25°C to +65°C. Designed for flexible access management, it supports fingerprint, password, RFID card, and app unlocking.

Specification	Details
Test Standard	EN 15684-2012
Test Certification	1 6 0 4 A F 0 2
Quality Standards	EN, SKG, CE, RoHS
Quality Guarantee	2 years
Protection Rating	IP66 water protection
Reading Range	Less than 20 mm
Battery	2 × CR2 lithium batteries
Battery Life	Up to 25,000 operating cycles (approximately 2 years of use)
User Capacity	Up to 1,000 RFID cards, 250 passwords, 100 fingerprints, and 100 app users
Unlocking Methods	Fingerprint, password, RFID card, and app
Operating Temperature	-25°C to +65°C
Additional Feature	External power supply protection
