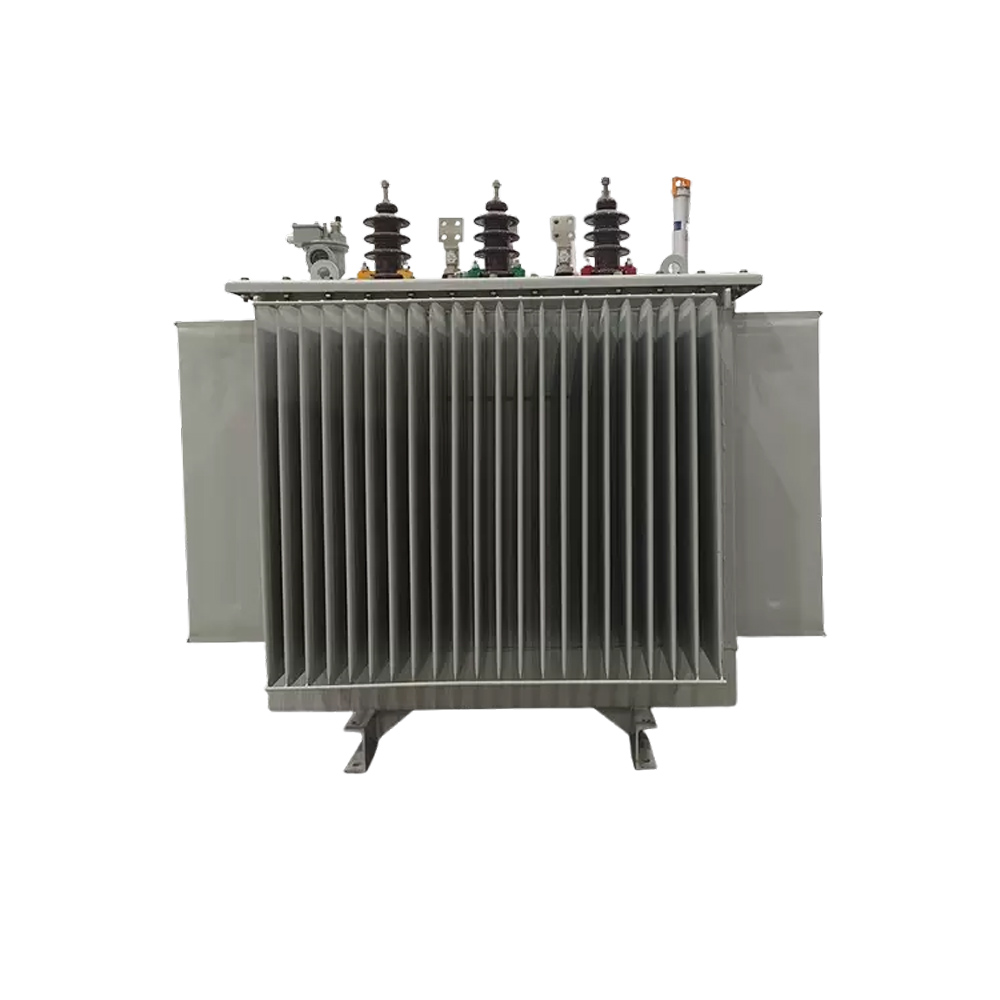

S11/13/20/22 Oil-immersed transformers

As power distribution systems continue to evolve, users are placing greater emphasis on efficiency, reliability, and lifecycle operating costs rather than focusing only on transformer capacity. Across industrial plants, infrastructure construction, commercial facilities, and utility distribution projects, transformer selection increasingly affects energy consumption, maintenance planning, and long-term operational stability.

The S11/13/20/22-M (20–10kV) oil-immersed distribution transformer series is developed to meet these practical requirements. Through optimized magnetic design, upgraded insulation systems, improved cooling capability, and fully sealed construction, this high-efficiency transformer provides stable power delivery while helping reduce operational losses.

Designed for Modern Distribution Requirements

Modern distribution networks operate under increasingly complex conditions, including continuous loads, fluctuating demand, and expectations for higher energy efficiency.

Compared with conventional distribution equipment, the S11/13/20/22-M series is engineered to support:

• Lower no-load and load losses

• Stable temperature control during operation

• Improved resistance to electrical and mechanical stress

• Reduced maintenance frequency

• Long-term operational reliability

• Enhanced lifecycle value

This makes the transformer suitable for projects where efficiency and dependable performance are equally important.

Optimized Conductors for Reduced Energy Loss

Electrical performance begins with winding quality.

The transformer adopts high-purity oxygen-free copper conductors for the high-voltage winding system and combines them with precision winding technology.

Key advantages include:

• Lower conductor resistance

• Improved current carrying capability

• Reduced heat generation under load

• More consistent electrical performance over extended service periods

The optimized winding process also supports better structural integrity during long-term operation.

Low-Loss Core Structure Improves Energy Efficiency

Core losses remain an important factor in total transformer operating costs.

The S11/13/20/22-M series utilizes premium cold-rolled silicon steel core materials and optimized magnetic path design to improve energy utilization.

Performance benefits include:

• Lower no-load loss levels

• Reduced magnetic energy consumption

• Decreased internal temperature rise

• Higher overall operating efficiency

For installations running continuously, improved core efficiency contributes directly to lower energy expenditure.

Reinforced Insulation System Enhances Reliability

Transformer durability depends heavily on insulation performance.

This series incorporates upgraded laminated insulation materials and strengthened internal support structures to improve resistance to electrical and mechanical stresses.

The design helps deliver:

• Greater structural stability

• Enhanced short-circuit endurance

• Reduced insulation aging risk

• Longer operational service life

These characteristics are especially valuable in environments with changing load conditions.

Improved Cooling Supports Stable Operation

Effective heat management plays an important role in maintaining transformer performance.

The internal winding arrangement is optimized with dedicated oil circulation channels to improve heat transfer efficiency.

Advantages include:

• Faster internal cooling response

• More balanced temperature distribution

• Improved overload adaptability

• Reduced thermal impact on insulation systems

Better thermal management supports stable output and extends equipment longevity.

Fully Sealed Construction Reduces Maintenance Requirements

To maintain internal oil quality and protect transformer components, the S11/13/20/22-M series adopts a fully sealed oil tank structure.

Combined with refined oil treatment processes and durable sealing materials, the design helps:

• Minimize moisture intrusion

• Reduce contamination risks

• Lower oil aging speed

• Decrease maintenance workload

• Improve operational cleanliness

This configuration is well suited for installations requiring dependable long-term service.

Suitable for Multiple Distribution Scenarios

The S11/13/20/22-M oil-immersed transformer series can be applied across a wide range of industries and projects, including:

• Industrial production facilities

• Commercial power distribution systems

• Municipal infrastructure projects

• Manufacturing plants

• Energy-intensive operating environments

• Distribution network upgrade projects

Its combination of efficiency, reliability, and structural durability supports stable power delivery across varying application conditions.

Choosing a Transformer Beyond Rated Capacity

When selecting a distribution transformer, capacity and voltage ratings are only part of the evaluation.

Other important considerations include:

• Energy efficiency performance

• Cooling effectiveness

• Structural strength

• Insulation reliability

• Maintenance expectations

• Long-term operating cost

The S11/13/20/22-M series is developed with these real-world requirements in mind, providing a practical solution for users seeking dependable and efficient distribution equipment.

As a professional transformer manufacturer, BinChang continues to focus on product optimization and reliable power distribution technology to support evolving industrial and infrastructure needs.
