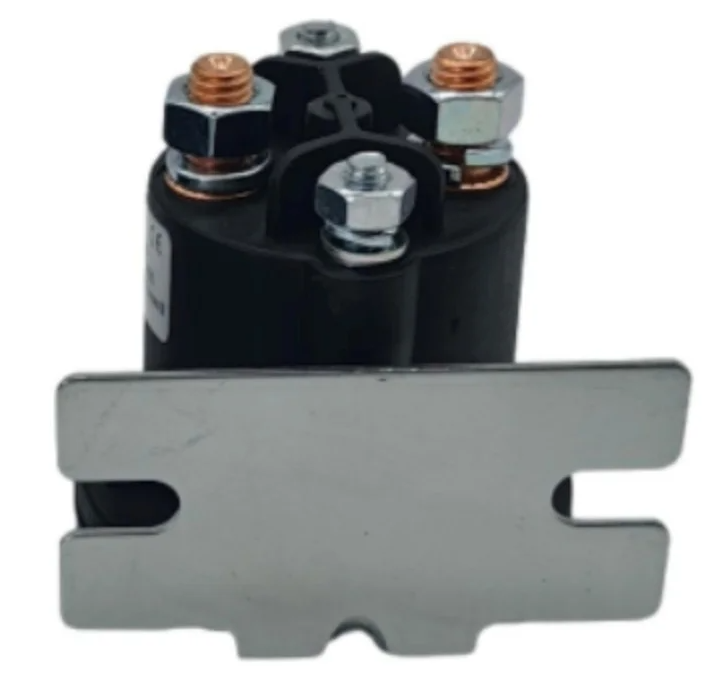

CZ1 DC Contactor

The CZ1 Series DC Contactor is a high-performance power switching component designed for electric drive systems and DC power control applications. It is widely used in traction motor systems, hydraulic power units, main power switching equipment, and energy storage charging systems.

Featuring high-purity copper/silver alloy arc-resistant contacts, the CZ1 series provides excellent electrical conductivity, strong current handling capability, and reliable arc suppression performance. The optimized coil design reduces power consumption while maintaining stable switching operation.

With a fully sealed structure, the contactor offers excellent protection against dust, moisture, vibration, and harsh operating environments. This makes it suitable for long-term operation in demanding industrial applications where reliability and easy replacement are essential.

Key Features

• High current carrying capability
  Uses high-quality copper/silver contact materials to ensure efficient current transmission and improved resistance to electrical wear.

• Low coil power consumption
  Optimized electromagnetic design reduces energy consumption while maintaining stable contact operation.

• Strong environmental resistance
  Fully enclosed waterproof and dustproof housing protects internal components from moisture, dust, and mechanical impact.

• Reliable operation under harsh conditions
  Designed to withstand vibration, temperature fluctuations, and demanding industrial environments.

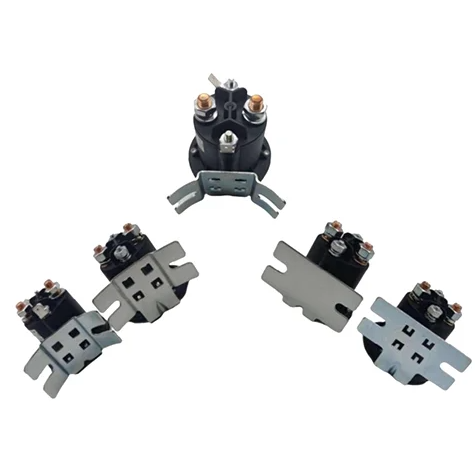

• Flexible installation compatibility
  Multiple bracket configurations and housing options support different system integration requirements.

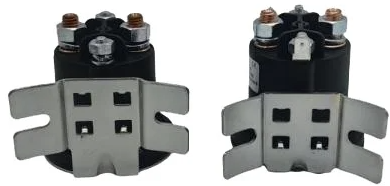

Housing Design Options

The CZ1 Series DC Contactors are available in two housing configurations:

CZ1 Round Housing

The standard round housing design provides compact installation and reliable mechanical protection, making it suitable for a wide range of DC power control applications.

CZ1-F Square Housing

The square CZ1-F housing offers an alternative structural design for applications requiring different mounting arrangements or equipment layouts.

Contact Configuration Options

The CZ1 Series DC Contactors are available with two contact structure options:

Standard CZ1 Contact

The standard contact configuration provides reliable switching performance for general DC power control applications.

Enlarged Contact CZ1-L

The CZ1-L version adopts an enlarged contact structure, offering:

• Higher current capacity;

• Improved electrical durability;

• Enhanced performance under heavy-load switching conditions.

This option is suitable for applications requiring higher switching frequency or increased power load capability.

Application Areas

The CZ1 Series DC Contactor is commonly used in:

• Electric vehicle traction systems;

• Hydraulic drive systems;

• Main power switching units;

• Battery energy storage charging equipment;

• Industrial DC power control systems;

• Electric machinery and drive equipment.

With reliable switching performance, flexible configuration options, and strong environmental adaptability, the CZ1 Series DC Contactor provides a stable solution for modern electric power control systems.
