Blade Battery Connector Specs: Types, Mounting & Ratings

Blade Battery Connector Series — Technical Specification Catalog

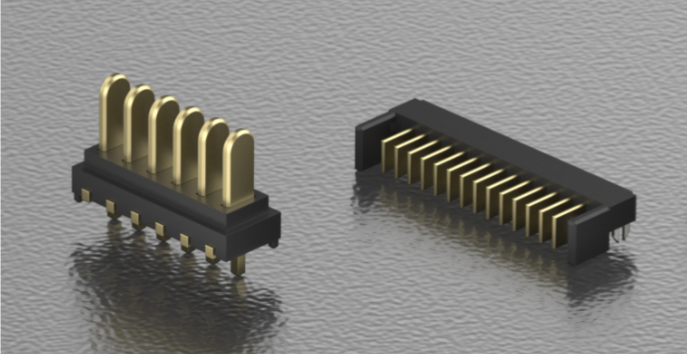

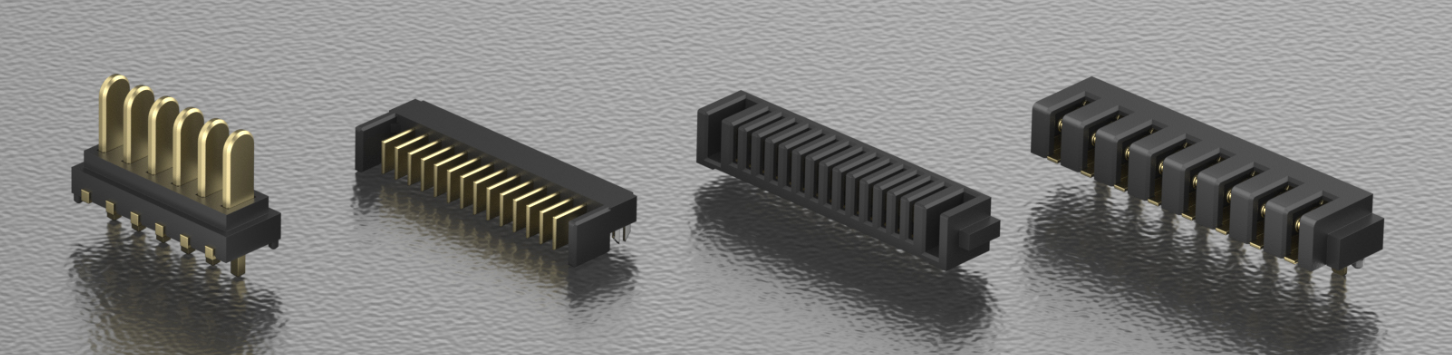

Battery Socket Connector Type (Low-Temperature-Rise Battery Terminal)

Features:

• Product Positioning: Low-temperature-rise battery terminal connector for high-current battery packs
• Thermal Design: Low contact resistance construction minimizing heat buildup during high-current operation
• Housing Profile: Low-profile housing with minimal stack height for slim handheld devices
• Mounting Type: Surface Mount (SMT)
• Industry Adaptation: Mobile phones, tablets, lightweight handheld scanners

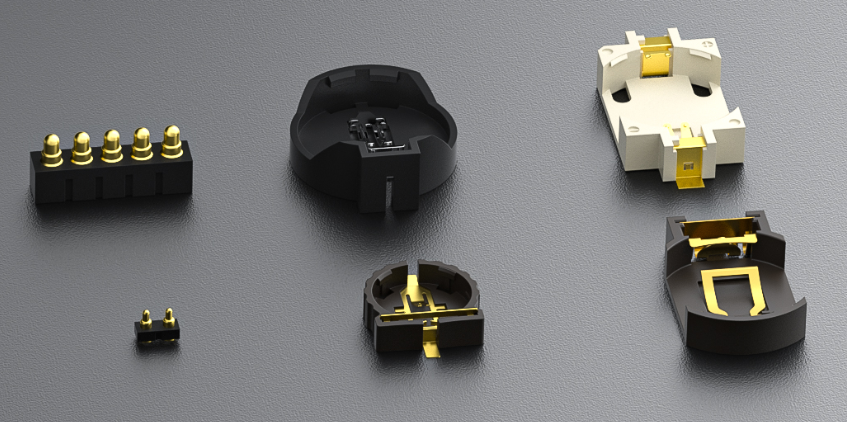

Button Cell Socket Type (CR1220 Battery Holder)

Features:

• Product Positioning: Ultra-low profile CR1220 button cell battery holder
• Enclosure Material: PPS engineering plastic, impact-resistant enclosure
• Contact Plating: Gold-plated springs preventing surface oxidation
• Product Height: 4.4mm (after mounting)
• Rated Voltage: 3V max
• Contact Resistance: 30mΩ Max
• Insulation Resistance: 1000MΩ Min
• Withstand Voltage: 500VAC r.m.s
• Operating Temperature Range: -55°C to +105°C
• Mounting Type: Surface Mount Technology (SMT)
• Industry Adaptation: Motherboards, medical pacemakers, hearing aids

Pogo Pin (Spring Pin) Blade Battery Connector Type

Features:

• Product Positioning: High-precision, space-saving spring interconnect for battery power connection and board-to-board docking on ultra-thin consumer electronics and smart home devices
• Compression Design: Scientific compression ratio of one-third of spring length for consistent contact resistance
• Mounting Type: SMT, DIP, Side-Mount, Bent-Pin, Double-Head structures
• Operation Direction: Vertical compression (SMT/DIP/Side-Mount); Bidirectional (Double-Head Type)
• Contact Plating: Gold-plated springs, anti-oxidation, low contact resistance
• Spring Force: 120g ± 20g
• Product Height: 1.5mm (working height after compression)
• Mating Life: 10,000 cycles
• Rated Voltage: Standard industrial & consumer electronic voltage, customizable
• Industry Adaptation: Smart home control panels, wearable devices, mobile consumer electronics, miniature intelligent equipment

Blade Terminal Type (Pre-Insulated Solder-Free Crimp Battery Connector)

Features:

• Product Positioning: Cost-effective pre-insulated blade-style crimp terminal for solder-free battery and power wire termination
• Terminal Shape: Blade
• Current Rating: 27A
• Voltage Rating: 300V–600V
• Contact Plating: Mist-Tin / Bright-Tin, anti-oxidation, stable contact resistance
• Retention Method: Crimp connection without soldering, anti-loosening under vibration
• Orientation Options: Right-angle 90° / Straight 180° vertical styles
• Operating Temperature Range: -40°C to +105°C; -25°C to +85°C (dual temperature grades)
• Mounting Type: Crimp termination to wire core (solderless)
• Delivery Lead Time: 3–4 weeks (standard); next working day for in-stock items
• Industry Adaptation: Control cabinet wiring, industrial automation equipment, power distribution units, household electrical appliances, instrument equipment, wiring harness assembly projects
